35 31 000 Removing and installing / replacing clutch pedal: Installation:

Assemble the spring above dead center (2).

Fig 1: Pushing Out Bolts And Removing Clutch Pedal

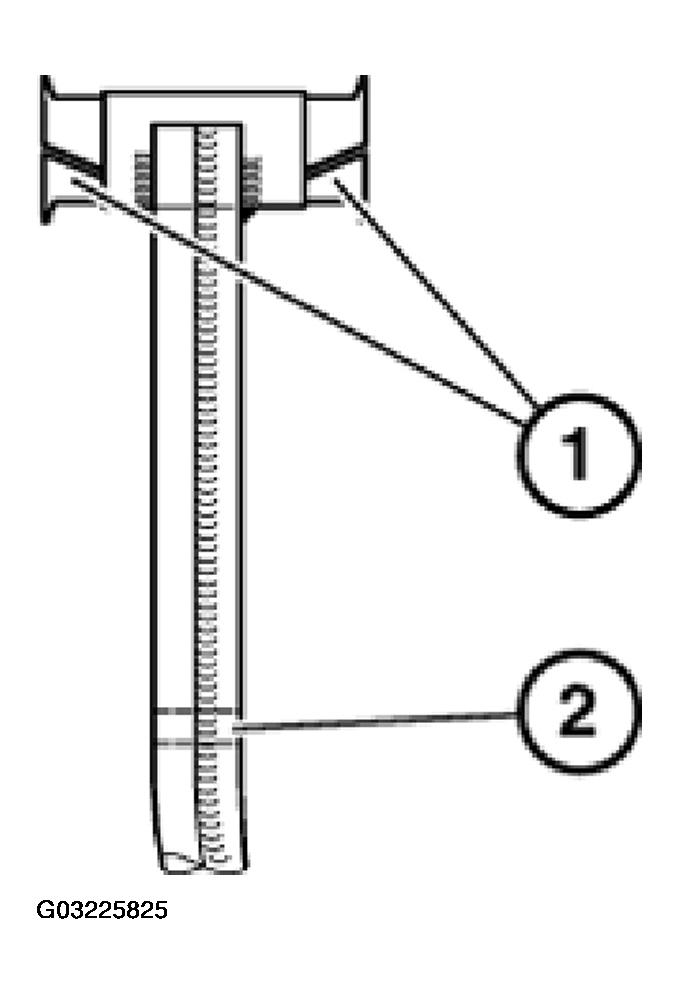

Check bearing bushes (1) and replace if necessary.

Apply a light coat of grease to bearing bushes (1) and bore (2).

Fig 1: Applying Light Coat Of Grease To Bearing Bushes
