35 21 000 Removing and installing or replacing brake pedal: Installation:

Check bearing bushes (1) and replace if necessary.

Apply light coat of grease to bearing bushes (1) and bore (2).

Attach spring in bore.

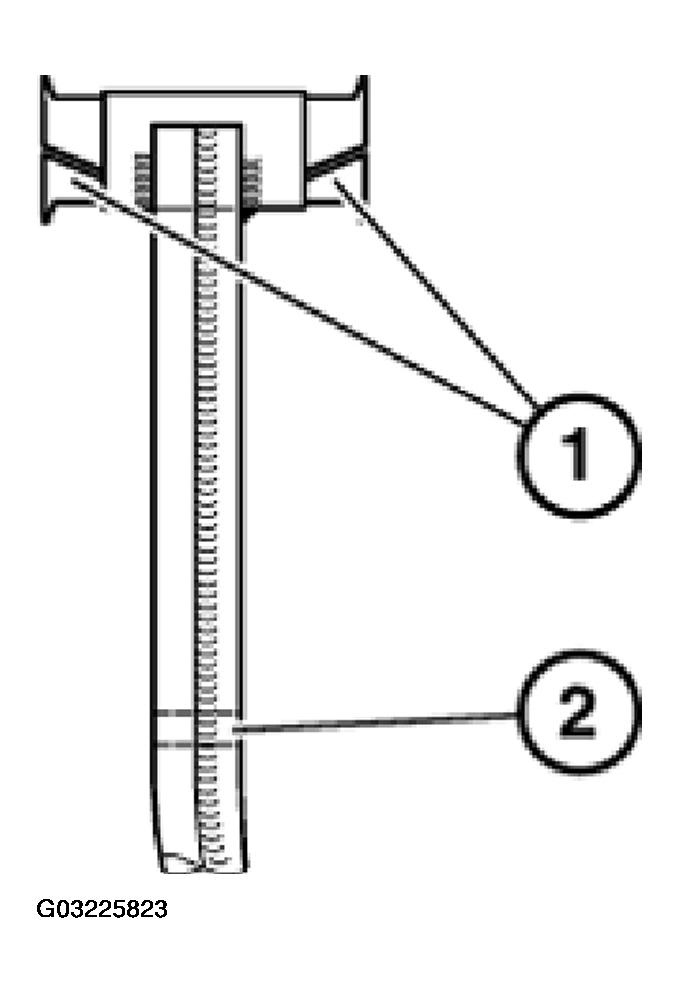

Fig 1: Checking Bearing Bushes
