25 16 130 Removing and installing/replacing shiftlock solenoid (Steptronic): Installation:
Attach handle to selector lever. Align handle and press on until it can be felt snapping into place.

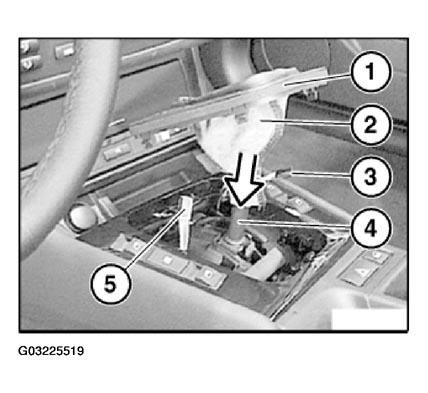

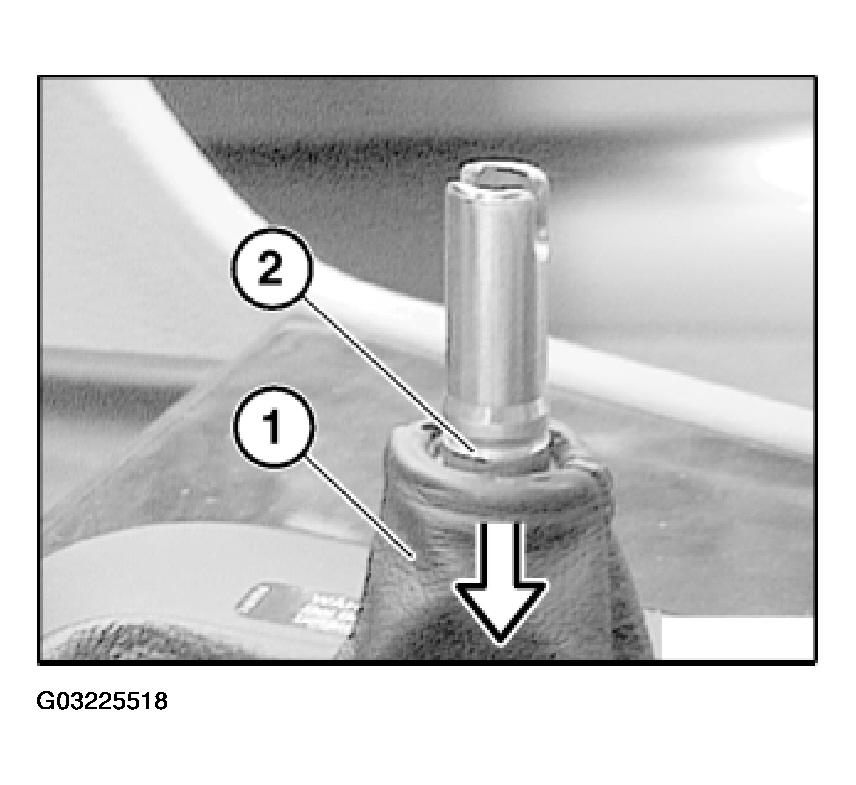

Push rubber gaiter (2) of panel (1) down and attach to selector lever (4).
Connect cable plugs (3 and 5) to panel (1) and install panel (1) in center console.

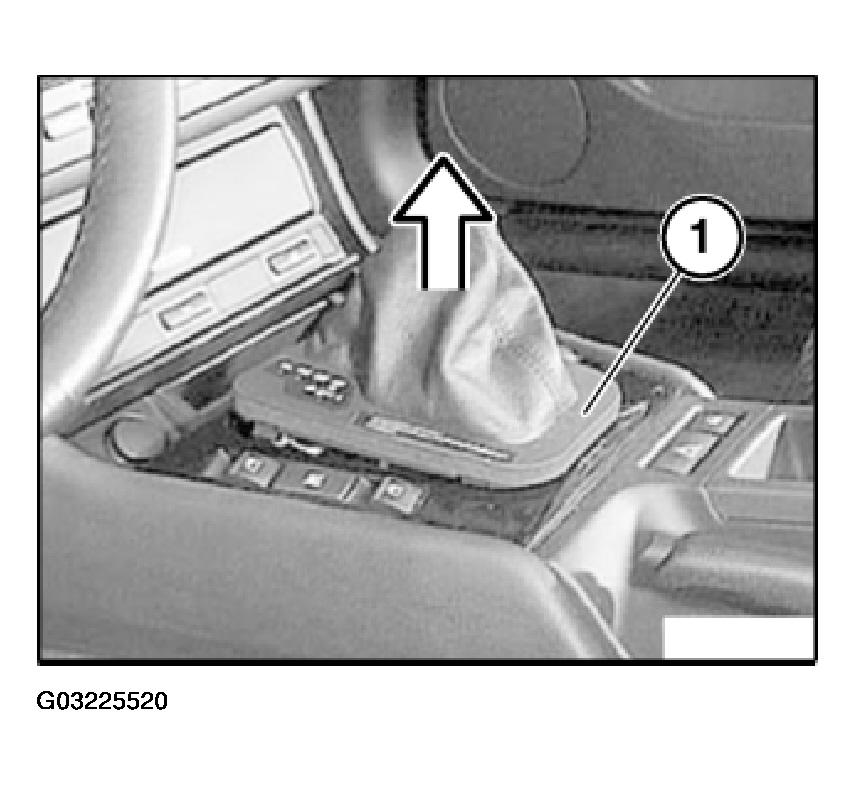

Remove trim (1) with rubber gaiter from center console.

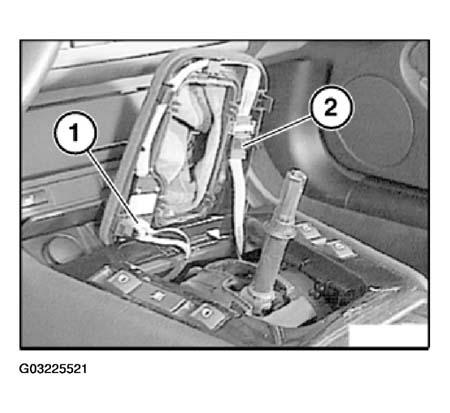

Disconnect cable plugs (1 ... 2).

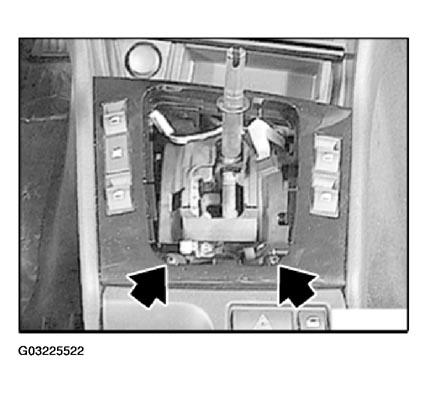

Unfasten screws.

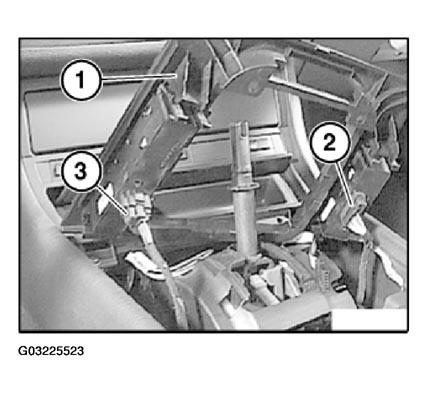

Lift panel (1) out of center console, disconnect cable plugs (2 ... 3) and remove panel (1).

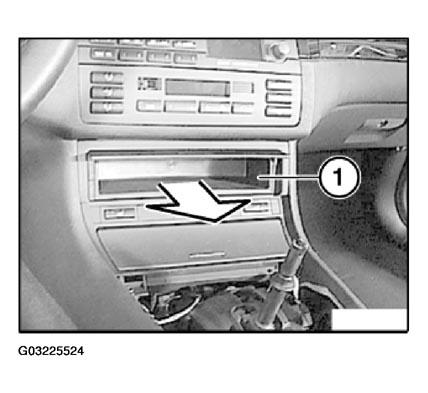

Remove storage tray (1).

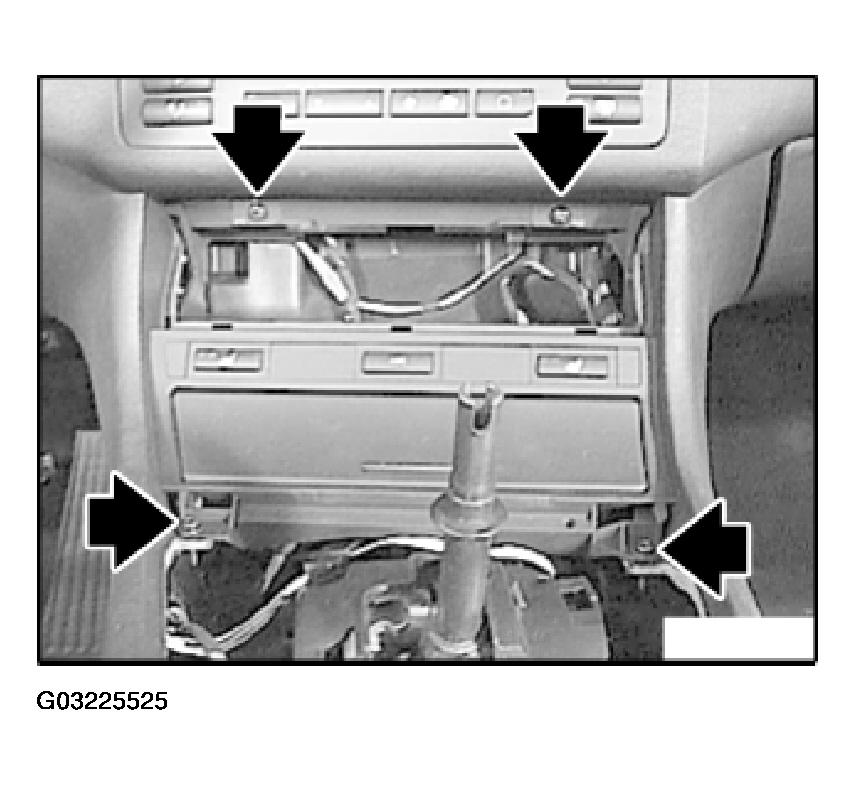

Unfasten screws.

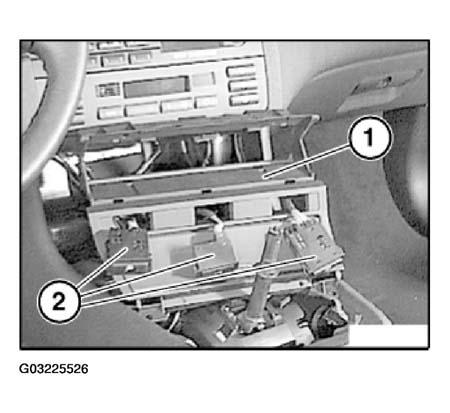

Remove support member (1) a little from center console.
Depending on equipment, press fitted switches (2) forward out of support member (1) and disconnect.
On rear side of support member (1), disconnect power cable from cigarette lighter. Remove support member (1).

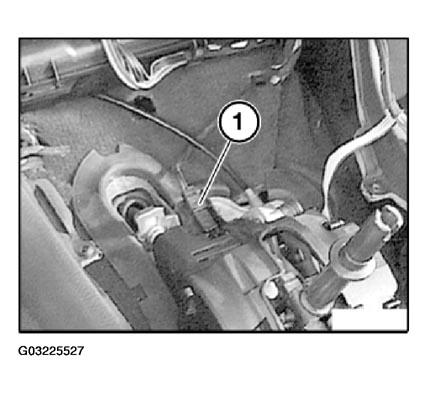

Release cable plug (1) from holder and disconnect.

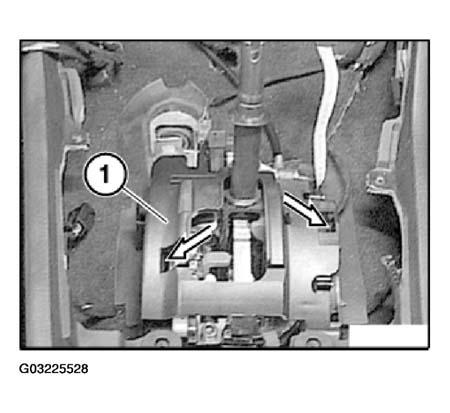

Release catches and remove protective cap (1) from shift bracket.

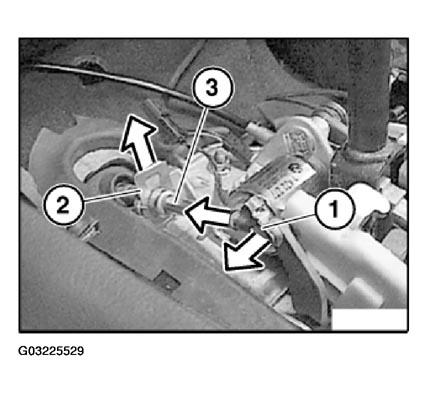

Unlock cable retainer (1) and detach.
Detach retaining plate (2).
Slide cable (3) as far as possible in direction of transmission tunnel.

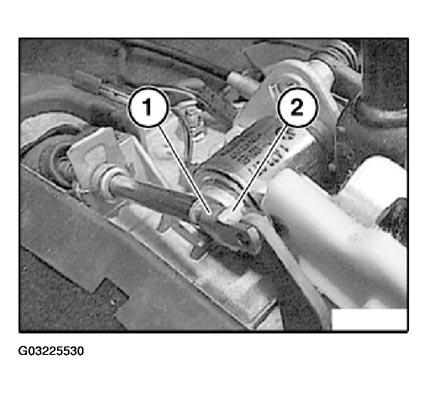

When installing shift cable, make sure rubber pad (2) is installed in shift cable fork (1).

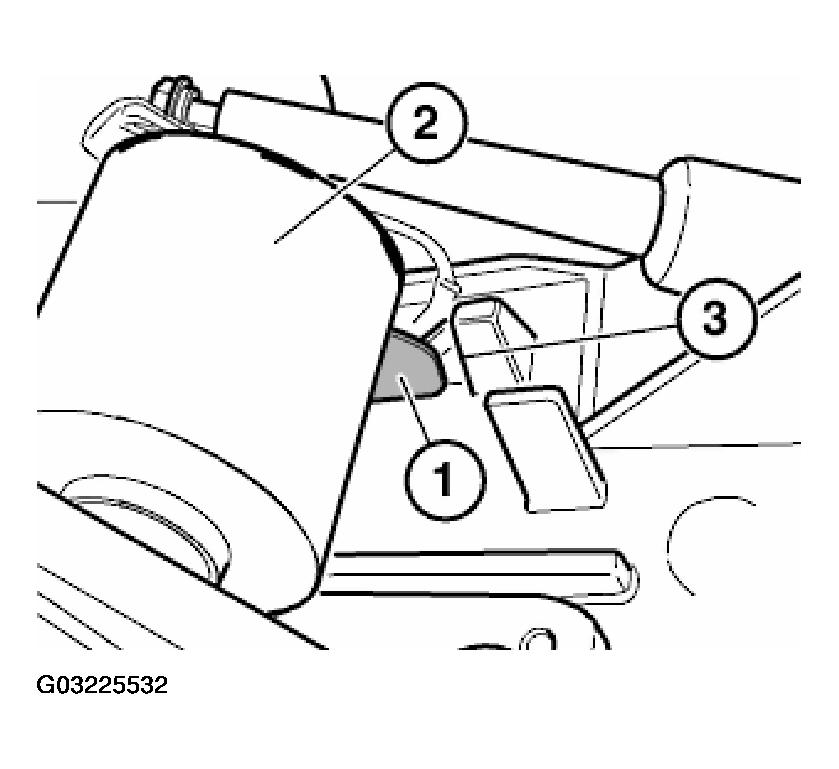

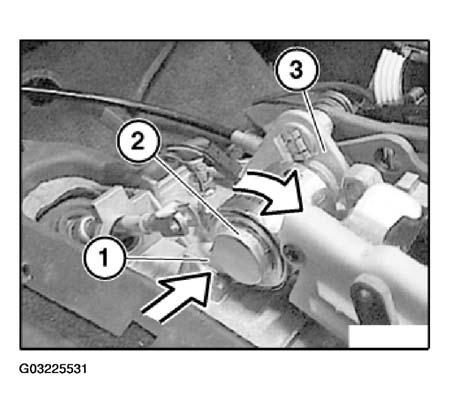

Press locking plate (1) in direction of arrow and turn shiftlock solenoid (2) clockwise until shiftlock solenoid (2) can be withdrawn from shift tower (3).
Insert shiftlock solenoid (2) into shift tower (3) and turn counterclockwise until locking plate (1) snaps into place.
