36 11 522 Removing and installing/replacing front receiving antenna for RDC: Notes

Remove wheel arch trim.

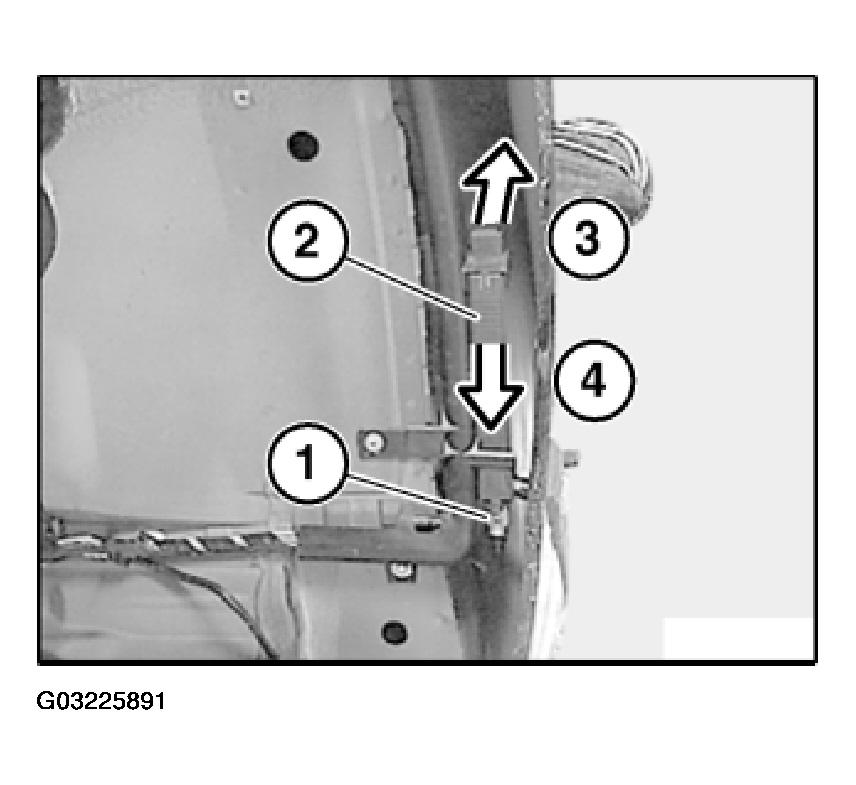

Fig 1: Pulling Receiving Antenna In Direction Out Of Mount

Unfasten plug connection (1) and disconnect.

At top end of receiving antenna, press lug for unlocking in direction (3) towards rear.

Pull receiving antenna (2) in direction (4) out of mount.

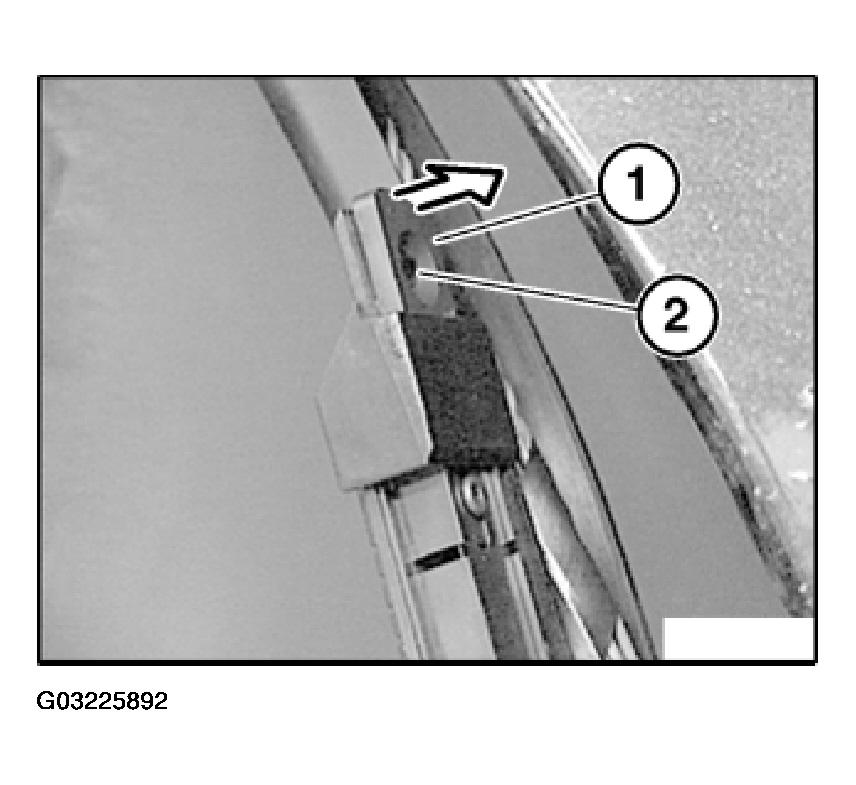

Fig 2: Removing Antenna
