Checking steering for zero play Steering tie rods and axle joints, steering gear, sleeves, flexible disk: checking condition

Turn steering wheel back and forth. In so doing, check for zero play.

Check steering sleeves, flexible disk and axle and tie rod sleeves for damage such as e.g. cracks, holes or missing strap retainers on gaiters.

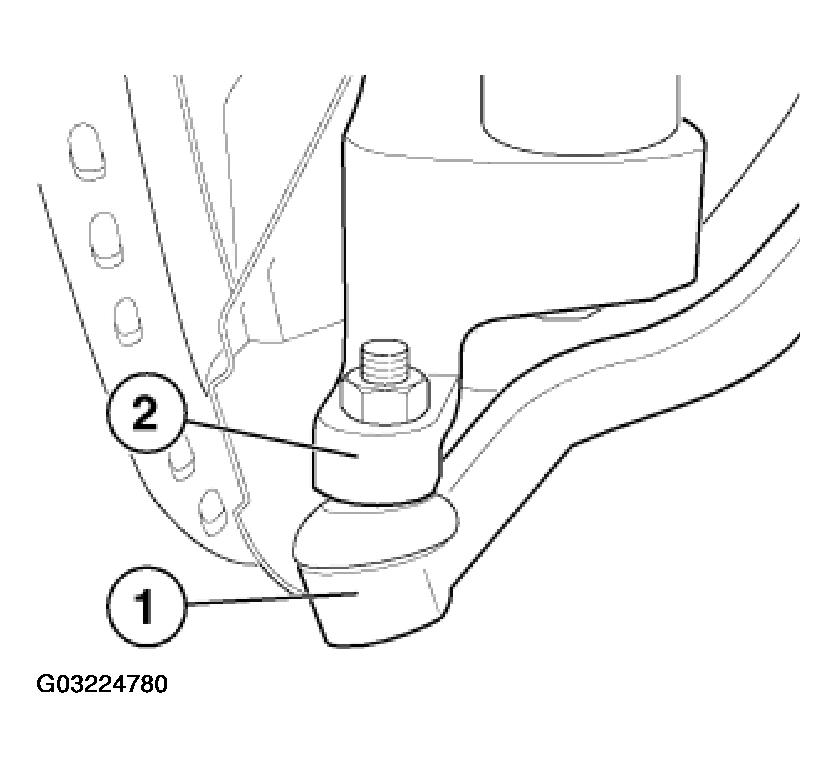

There must be no play between steering arm (2) and tie rod joint (1).

Fig 1: Checking Steering For Zero Play
G03224780
