51 42 000 Removing and installing rear left or right door trim panel

Remove cap (1).

Lift out locking unit and pull button (2) upwards to remove.

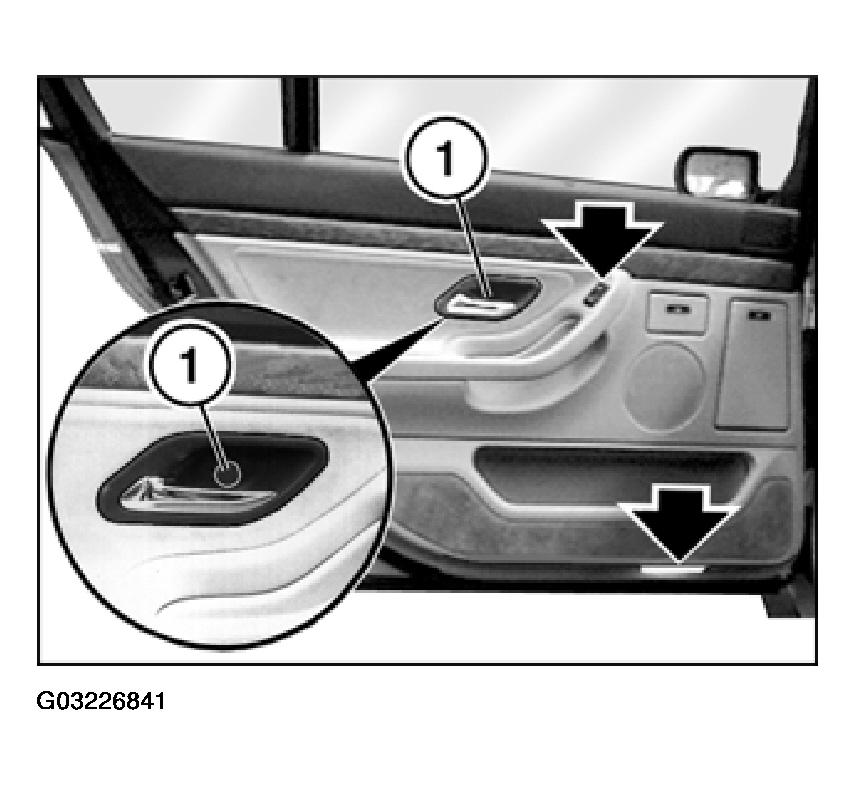

Fig 1: Removing Cap, Lifting Out Locking Unit And Pull Button

Installation:

Check gap (A) between cap (1) and guide (2).

(A) = 14.5 +/- 1 mm.

If necessary, remove button and adjust sleeve (3).

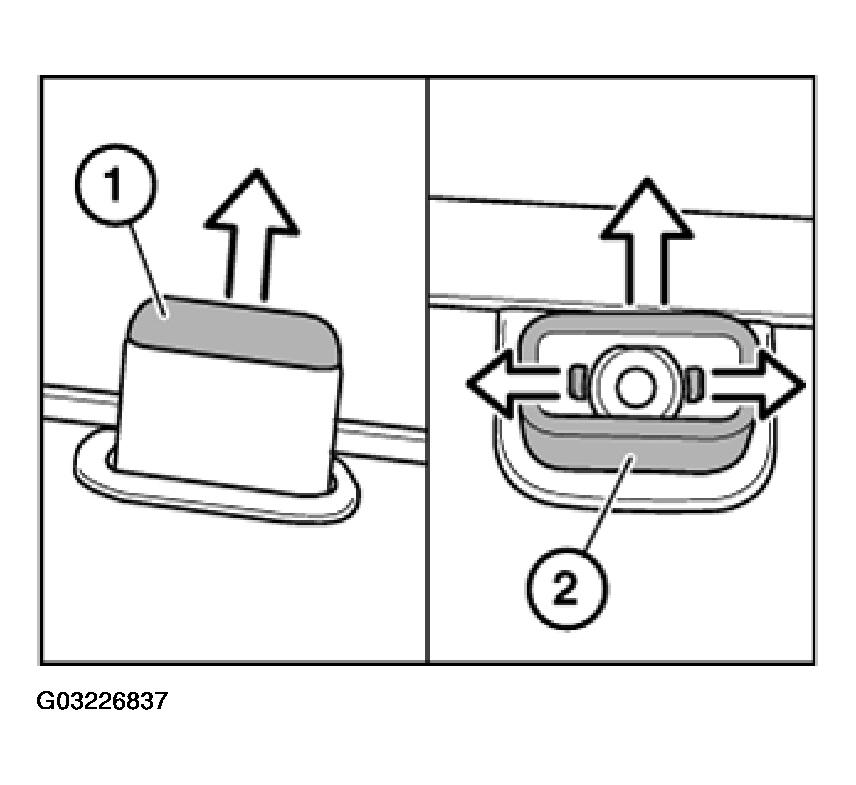

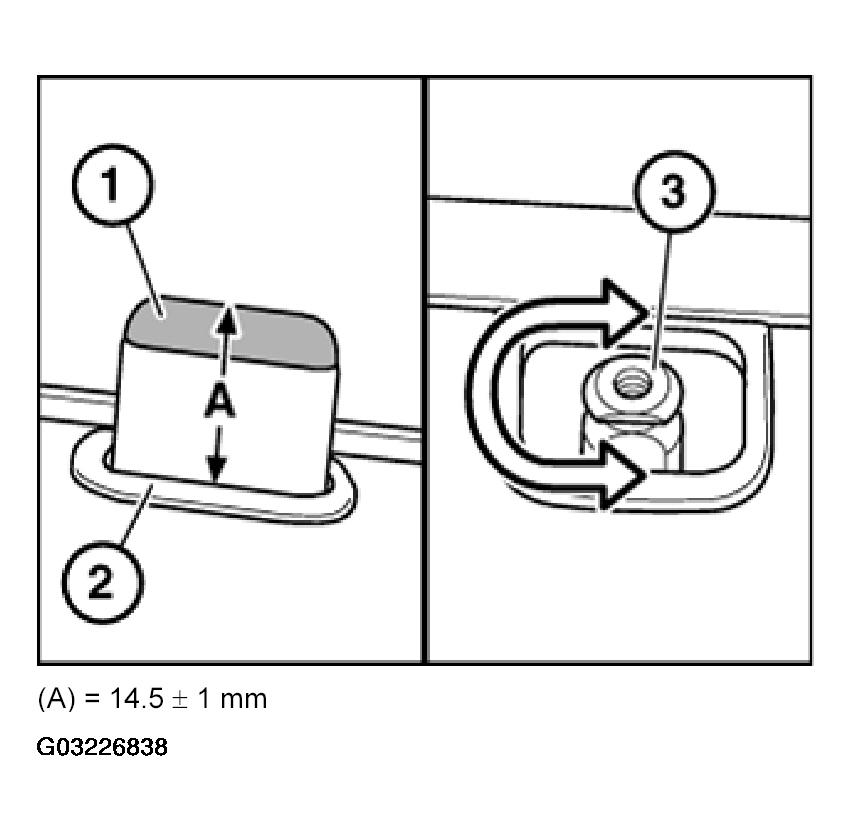

Fig 2: Removing Button And Adjusting Sleeve

Version with sun roller blind on side window:

Unfasten top of sun roller blind (1) and lift upwards and backwards (2) to remove.

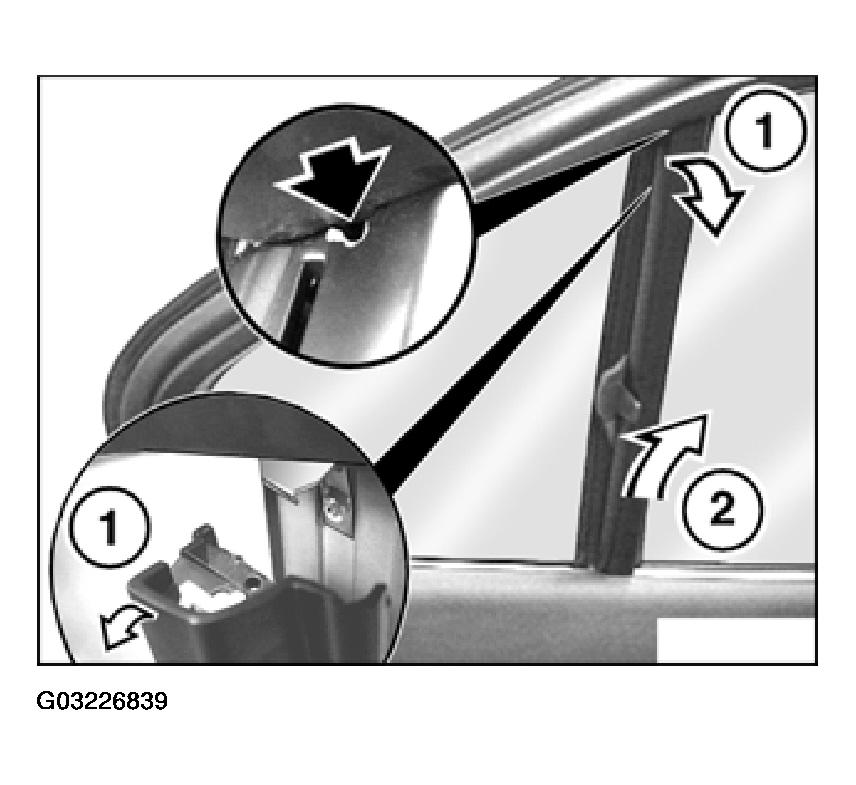

Fig 3: Unfastening Top Of Sun Roller Blind (1)

Version with sun roller blind on side window:

Unscrew screw.

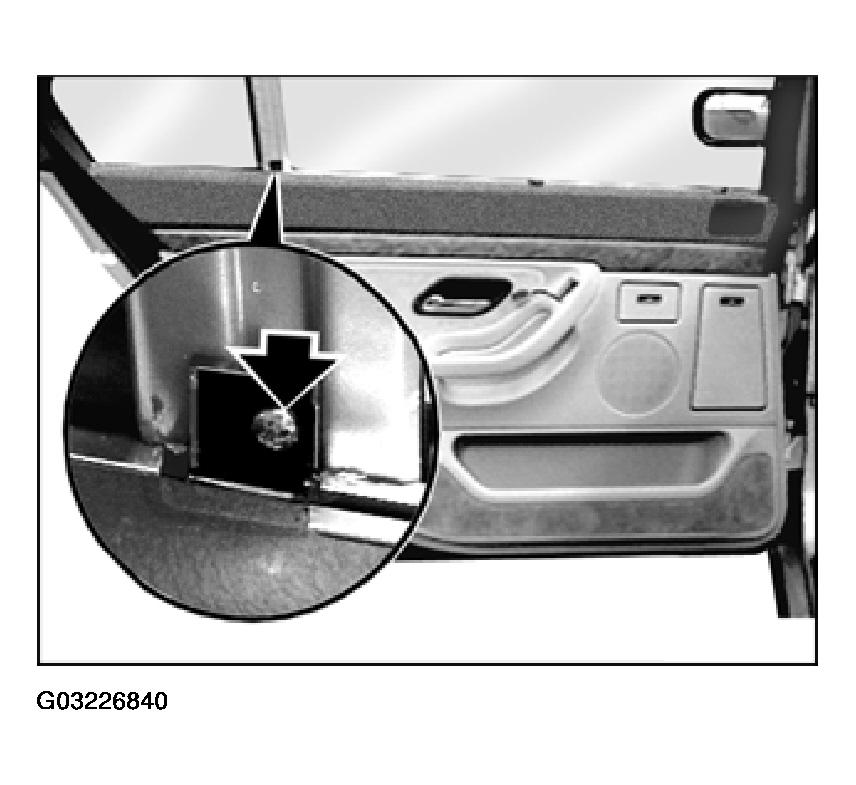

Fig 4: Identifying Sun Roller Blind On Side Window

Lift out footwell light and toggle switch (window regulator) and remove both connectors.

Lift out finisher (1) and unfasten screw.

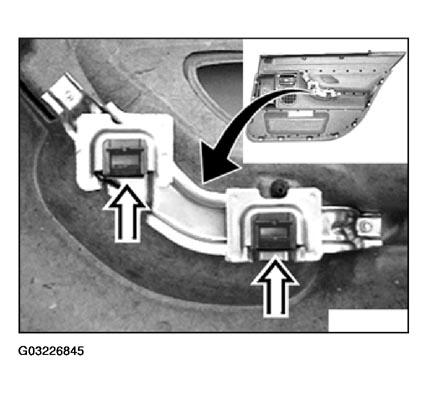

Fig 5: Lifting Out Footwell Light And Toggle Switch (Window Regulator)

Unclip door trim panel all around.

Fig 6: Uncliping Door Trim Panel

Pull door trim panel upward out of clips and push door opener (1) through door trim panel.

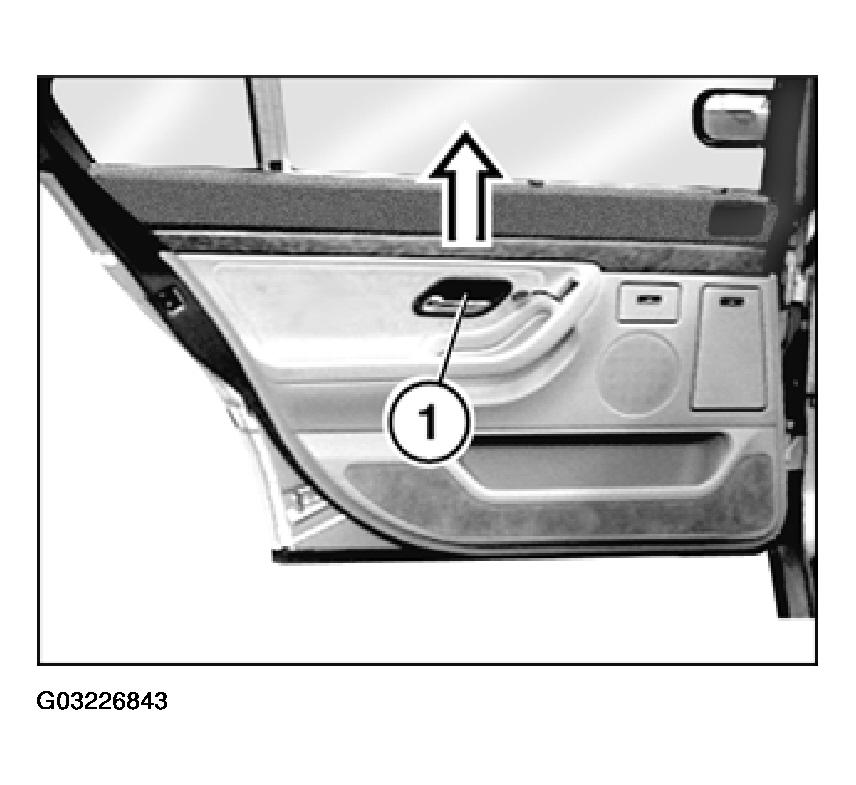

Fig 7: Pulling Door Trim Panel Upward Out Of Clips And Pushing Door Opener (1) Through Door Trim Panel

Version with sun roller blind on side window:

Installation:

Pull the side roller blind upwards off door trim before assembly.

Perform a function check on side roller blind.

Remove door clips.

Fig 8: Removing Door Clips

Installation:

Fit clips in door trim panel.

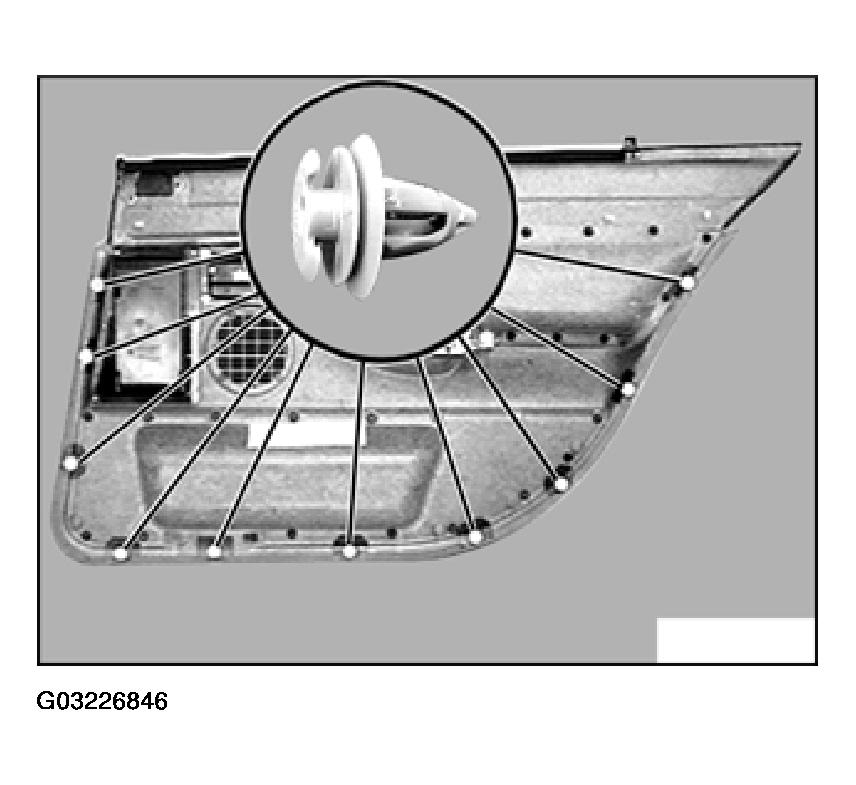

Fig 9: Installing Clips In Door Trim Panel

Installation:

If necessary, replace damaged clips.

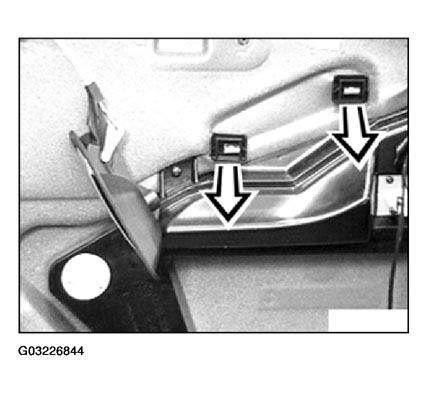

Fig 10: Identifying Clips

Cars with roller sun blinds on side windows:

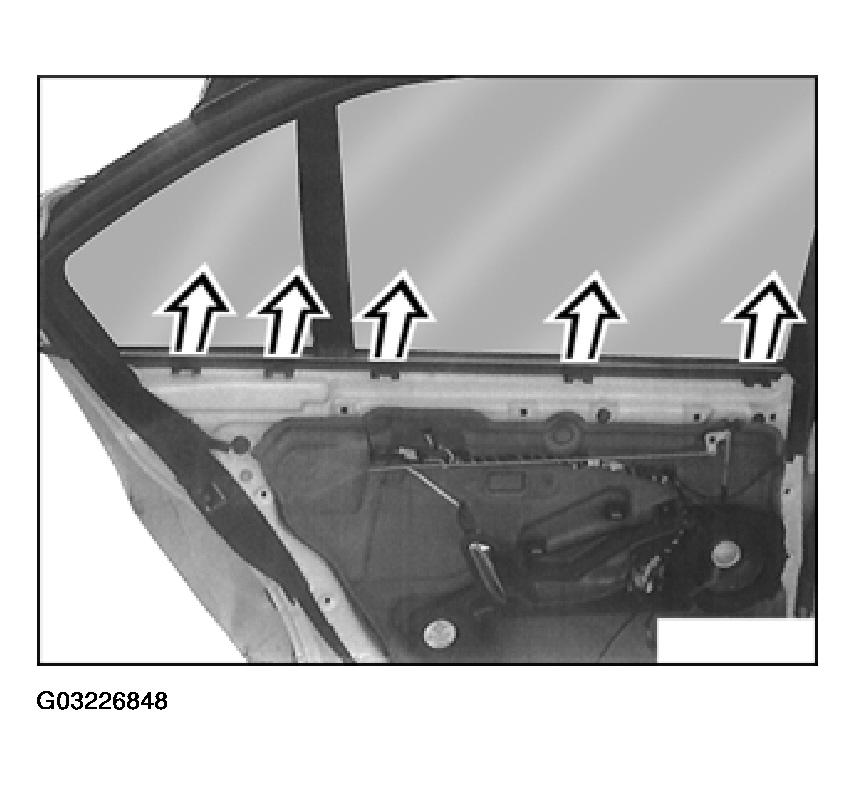

Remove door cavity seal fixed inside window by lifting upwards.

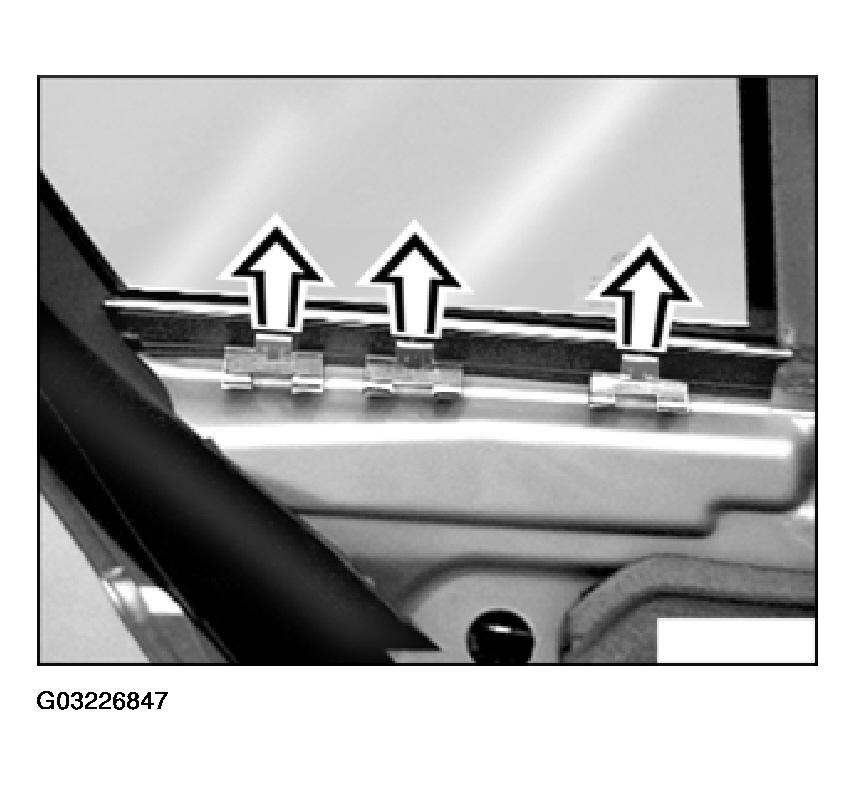

Fig 11: Removing Door Cavity Seal Fixed Inside Window (1 Of 2)

Cars without roller sun blinds on side windows:

Remove window cavity seal fixed inside window by lifting upwards.

Fig 12: Removing Door Cavity Seal Fixed Inside Window (2 Of 2)
