51 47 000 Removing and installing / replacing the front (inside) left or right rocker panel strip

WARNING: This page is about a different car, the 2001 BMW 740iL and 2001 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Slightly raise front rocker panel strip and pull forwards out of clips.

Lift clips off floor assembly.

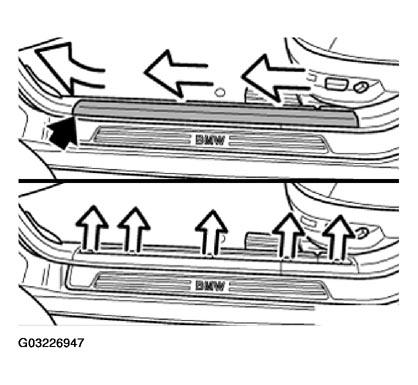

Fig 1: Lifting Clips Off Floor Assembly

Installation:

Slide clips onto rocker panel strip.

If necessary, replace damaged clips.

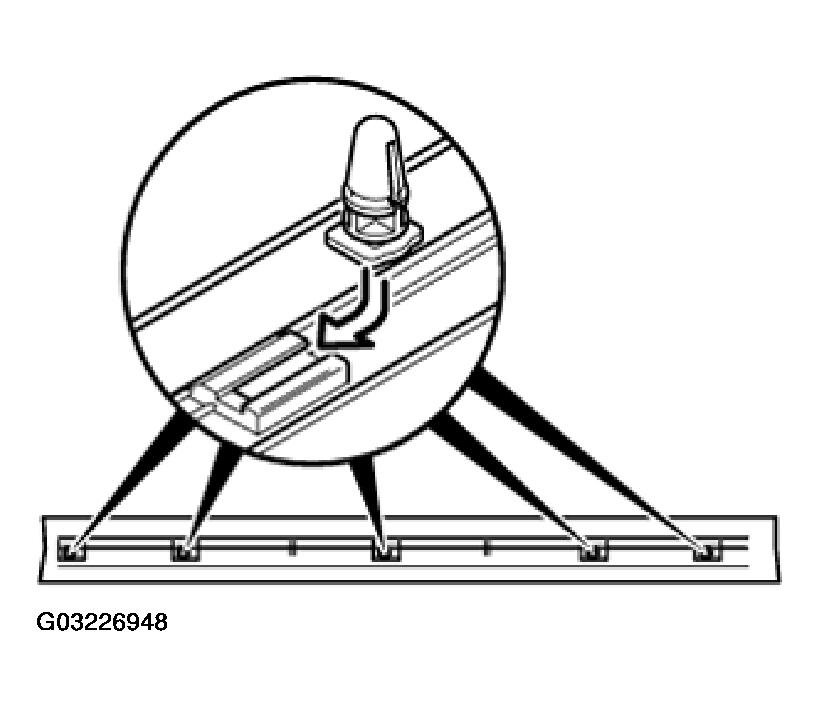

Fig 2: Identifying Slide Clips Onto Rocker Panel
