17 11 530 Removing and installing cassette (condenser for air conditioner): Notes
Remove radiator. Refer to 17 11 000 REMOVING AND INSTALLING RADIATOR .
NOTE:
The condenser for the A/C system is integrated in the cassette. At the same time, depending on the model of vehicle, the individual coolers for steering hydraulics, automatic transmission and engine oil are installed in the cassette.

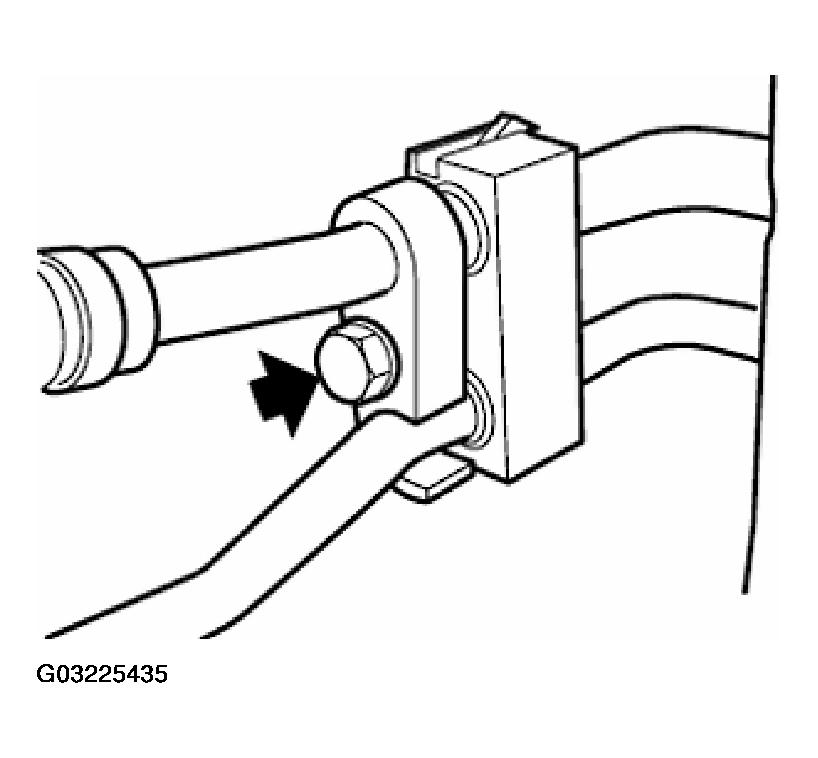

Disconnect lines for power steering and if necessary engine and transmission oil coolers.
