17 11 031 Replacing fan cowl: M62
If necessary, remove fan impeller and fan clutch from water pump, refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN COUPLING (M62) .

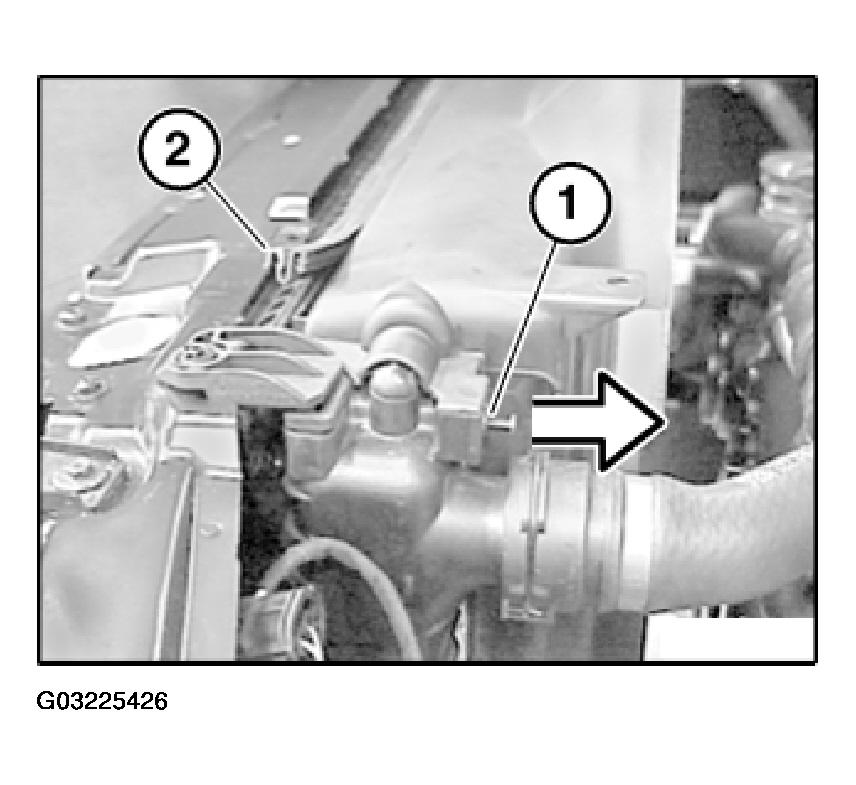

Lift out left and right expanding rivets (1).
Pull off sealing strip (2).
Lift fan cowl upwards to remove.
