Air conditioning

Unfasten plug connection on temperature switch.

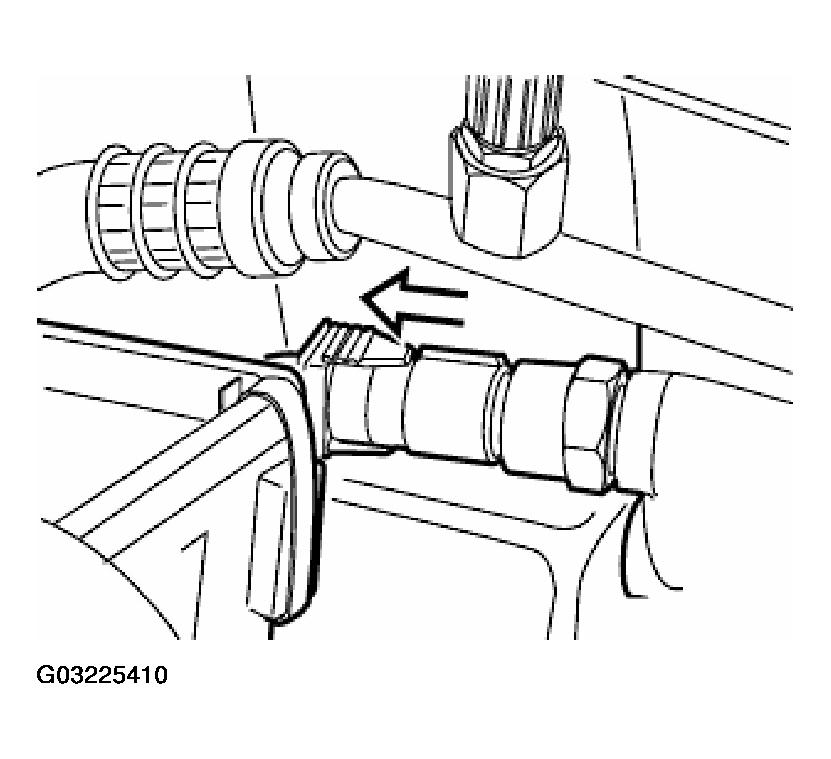

Fig 1: Unfastening Plug Connection On Temperature Switch

G03225410

Remove upper coolant hose.

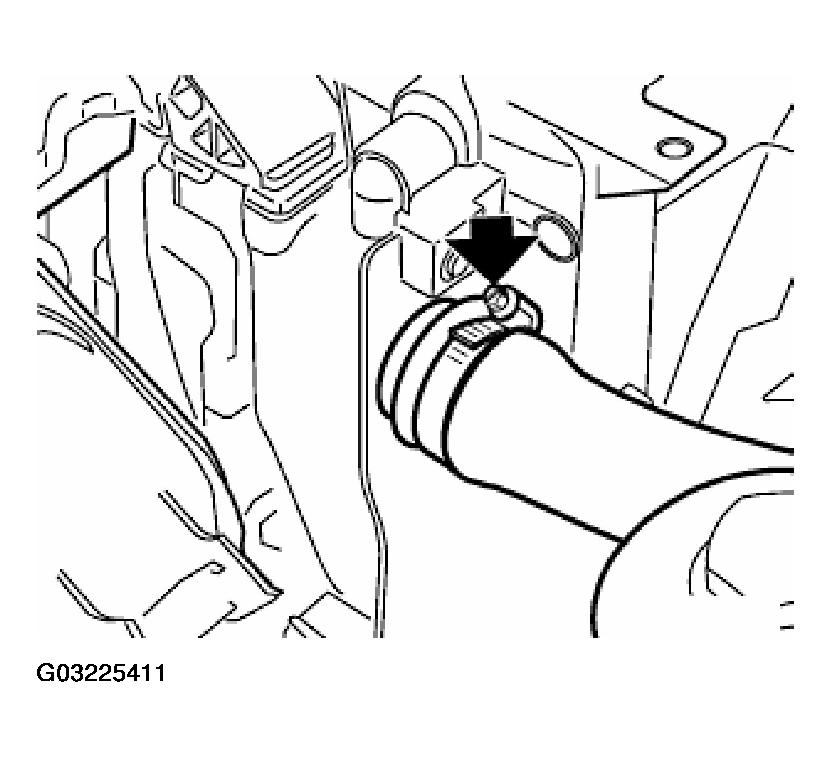

Fig 2: Removing Upper Coolant Hose

G03225411
