17 00 005 Draining and topping up coolant: Installation:

Replace seal.

Tightening Torque, refer to 17 11 2AZ 17 11 RADIATOR AND MOUNTING PARTS .

Drain, catch and dispose of coolant.

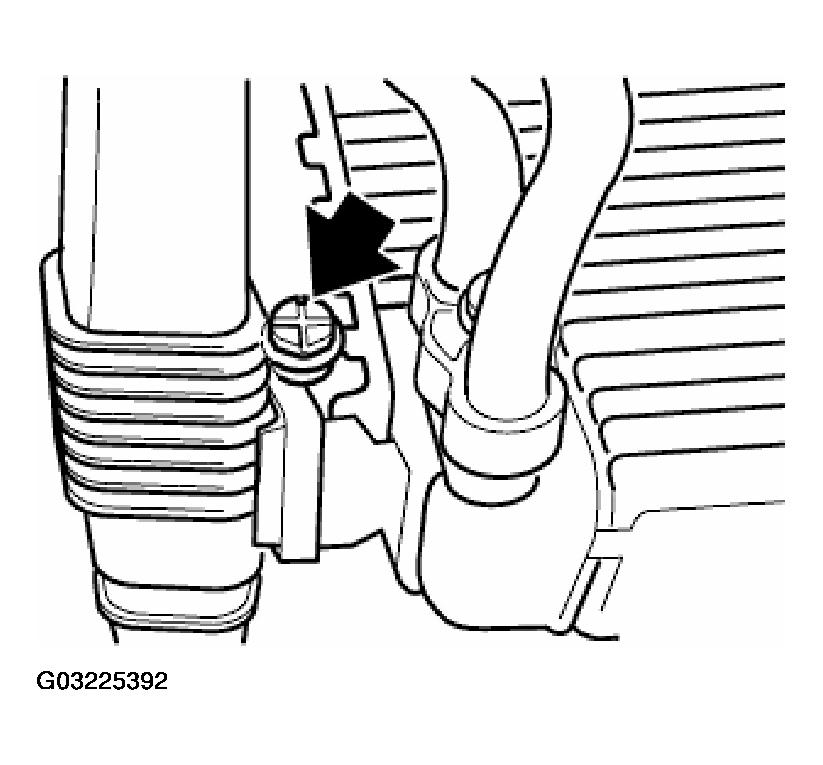

Fig 1: Identifying Radiator Drain Plug

Replace seal.

Tightening Torque, refer to 11 11 5AZ ENGINE BLOCK .

Drain off and catch coolant.

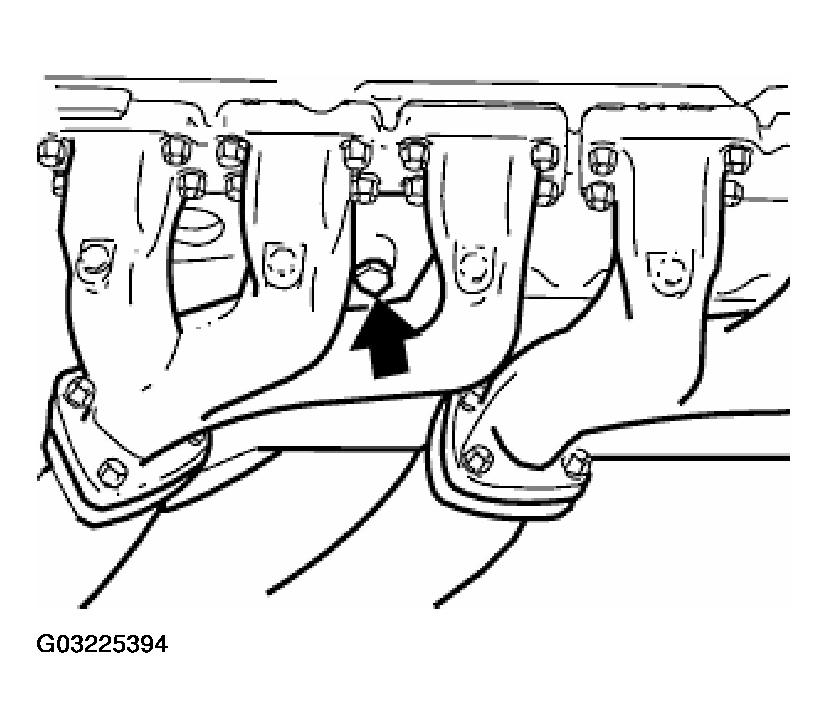

Fig 1: Identifying Engine Block Drain Plug
