62 11 210 Replacing instrument cluster electronics: Notes

Remove instrument carrier, refer to 62 21 000 REMOVING AND INSTALLING COMPLETE INSTRUMENT CARRIER

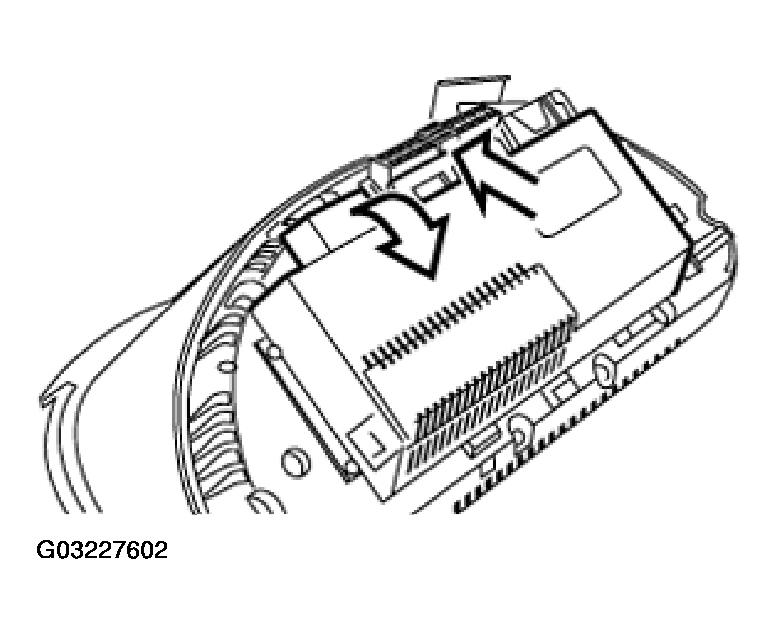

Unfasten locking unit, fold over retaining bracket and remove connector.

Fig 1: Unfastening Locking Unit

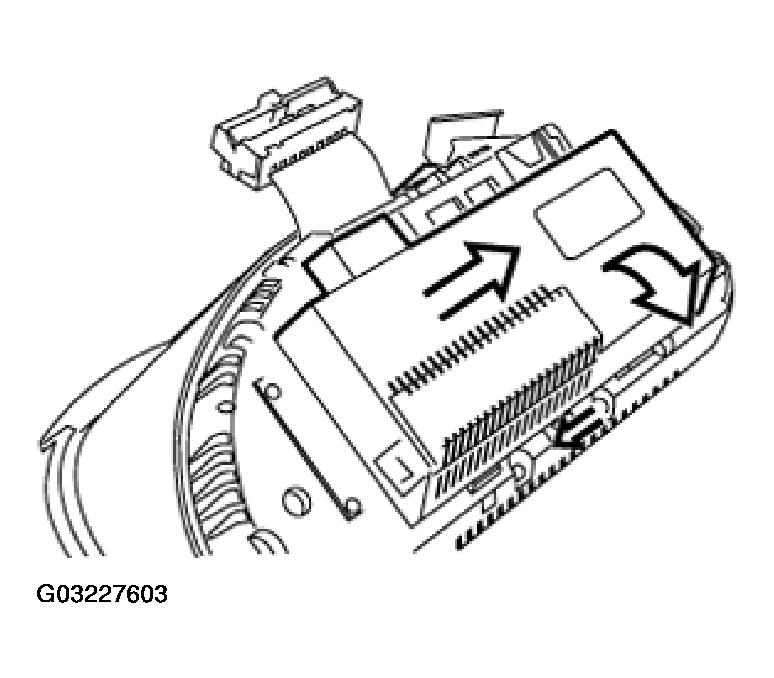

Unfasten locking unit, slide electronics module sideways and lift out.

Fig 2: Sliding Electronics Module Sideways And Lift Out
