26 11 051 Replacing joint disk for propeller shaft: Installation:

The screw connection may only be tightened by means of the nut.

Tightening Torque, refer to 26 11 1AZ PROPELLER SHAFT ASSEMBLY .

Joint disk must be fitted in such a way that arrows point to flange arms.

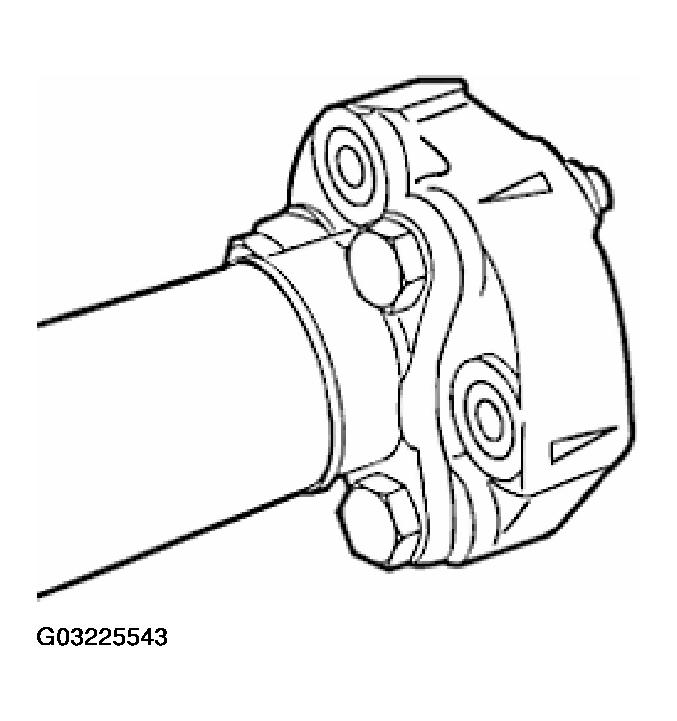

Fig 1: Identifying Joint Disk Fitting Position
