Minimum set: Measuring and testing equipment

V-ADAPTER LEAD, 42-PIN - GENERAL SPECIFICATION

In conjunction with: 61 4 390
Note: For measuring electrical variables at 42-pin plug connection of ABS/DSC and ABS/ASC control unit
Series: E38, E39, E65, E66
Storage location: M 204
SI number: 2 04 98(353)
Order number: 34 5 240 V-adapter lead, 42-pin

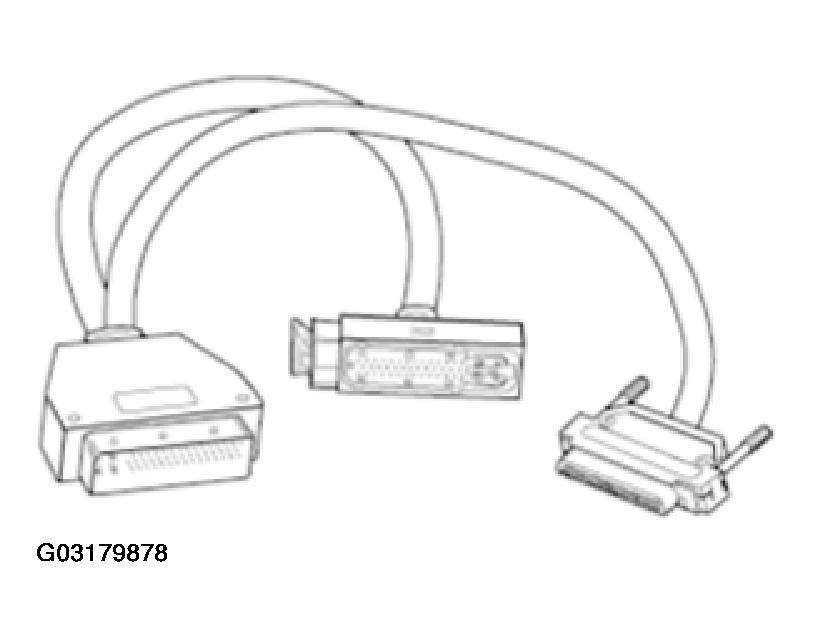

Fig 1: Identifying V-Adapter Lead, 42-Pin
G03179878
