34 3 200 Assembly fixture

ASSEMBLY FIXTURE - GENERAL SPECIFICATION

Note: For pressure regulator, H31 brake system
Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39
Storage location: B7
Order number: 34 3 200 Assembly fixture

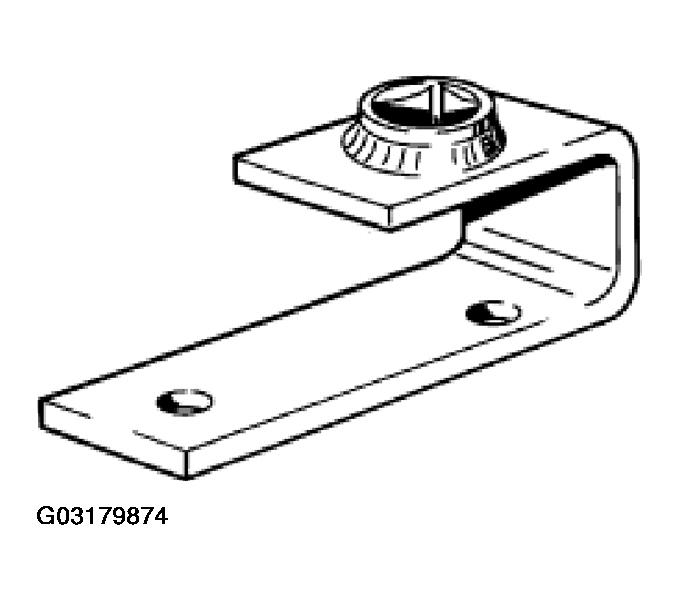

Fig 1: Identifying Assembly Fixture
G03179874
