34 52 545 Removing and installing/replacing transversal-acceleration sensor DSC3 up to 09/98: Notes
Removing driver's seat,
Standard seat, refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL / ELECTRIC)
Comfort seat, refer to 52 17 000 REMOVING AND INSTALLING FRONT SEAT (COMFORT)
Sports seat, refer to 52 16 000 REMOVING AND INSTALLING FRONT SEAT (SPORTS/ELECTRIC), LEFT OR RIGHT
Removing lower left door pillar trim, refer to 51 43 150 REMOVING AND INSTALLING OR REPLACING TRIM FOR LEFT OR RIGHT DOOR PILLAR (BOTTOM)
CAUTION:
After replacing the acceleration sensor, calibration must be carried out with DIS (Diagnosis and Information System) under the "Service functions" menu item.

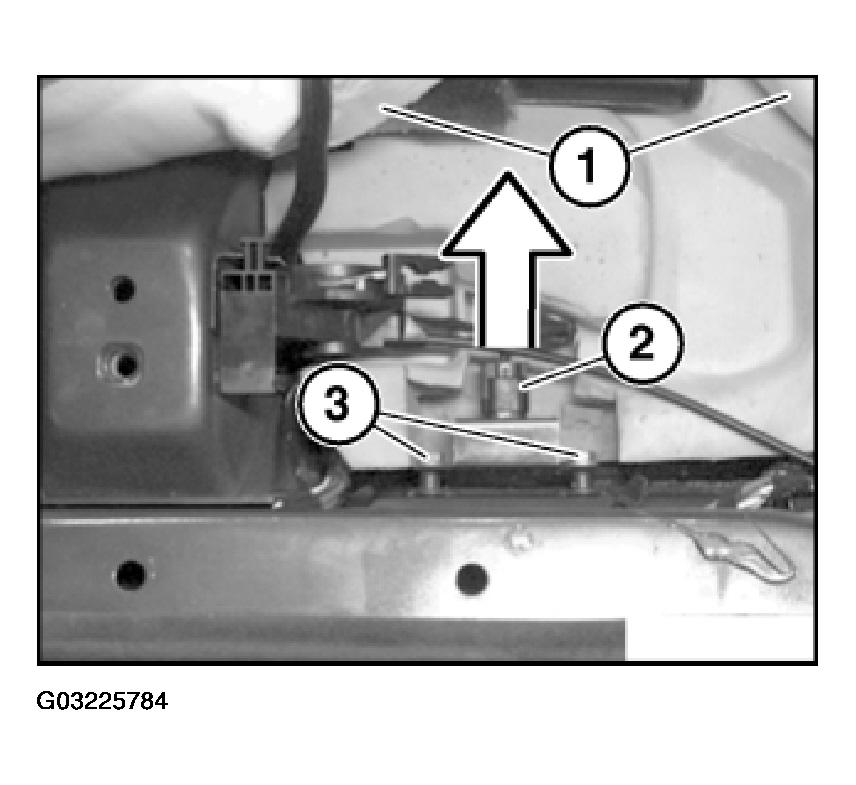

Lift floor trim panel (1) and fold sidewards.
Release plug connector (2) and pull off connector.
Unfasten screws (3) and remove acceleration sensor.
