34 11 552 Overhauling left or right front-brake caliper (brake caliper removed): Notes

NOTE: Use repair kit: refer to BMW Parts Service. Follow general instructions: Refer to 34 00 ... GENERAL DATA  .

Take off plastic caps (1).

Unscrew guide screws (2).

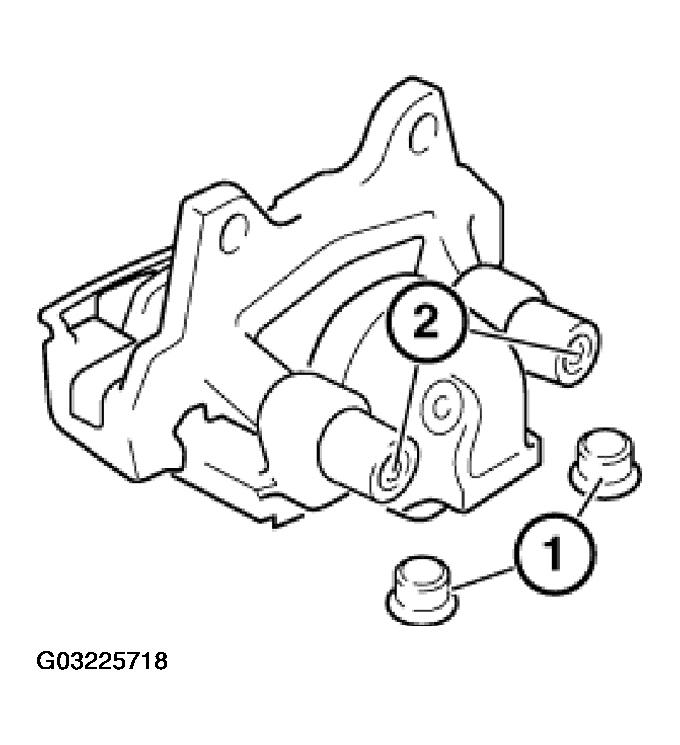

Fig 1: Identifying Plastic Caps And Guide Screws
G03225718
