34 11 ... Configuration of floating caliper (front)

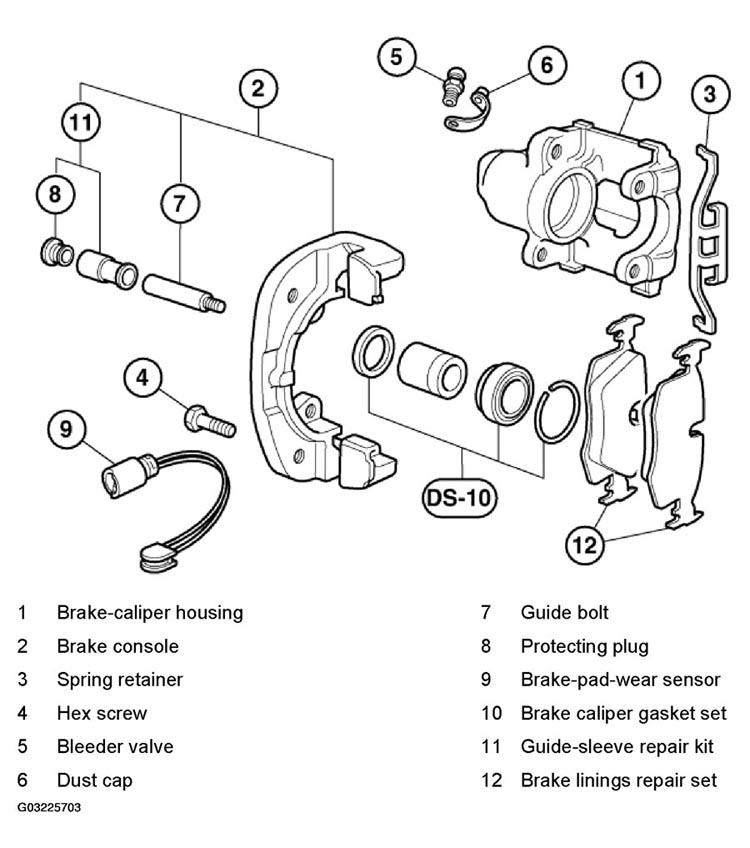

Fig 1: Identifying Brake Floating Caliper Components (Front)

G03225703
