34 52 535 Removing and installing/replacing rear ABS pulse generator: Notes
CAUTION:
Read and comply with General Information. Refer to 34 00 ... GENERAL DATA
. Remove rear wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL
.

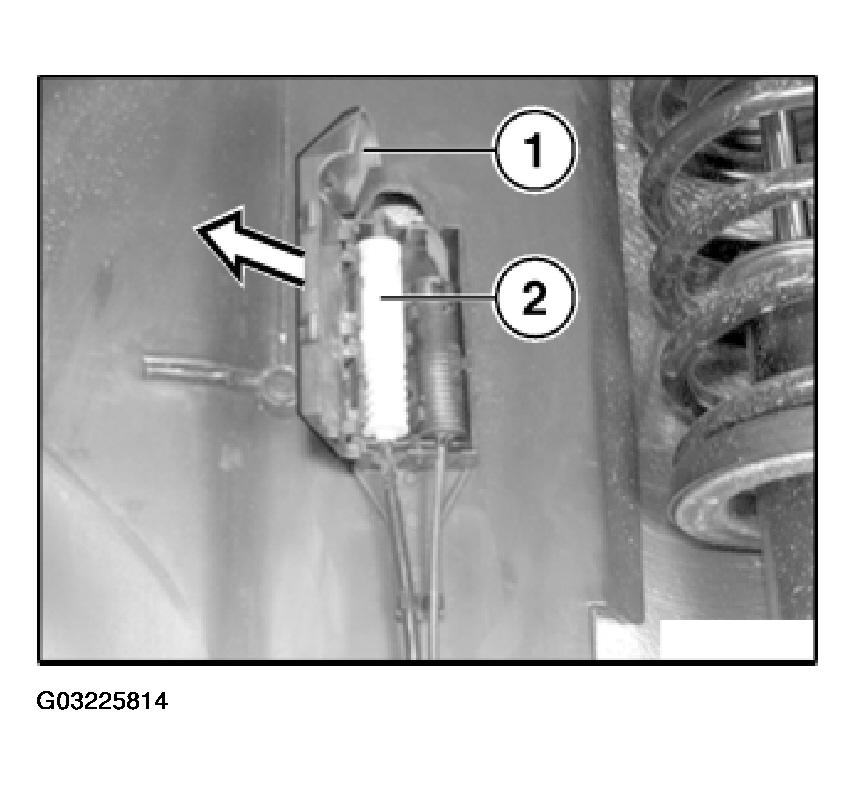

Open connector housing (1), pull plug connector (2) out of bracket and disconnect. Pull cable out of fasteners on swinging fork.
