34 52 510 Replacing control unit (for ABS)

CAUTION: Before removing the control unit, switch off ignition.

Remove lower glove box trim.

Unscrew bolts.

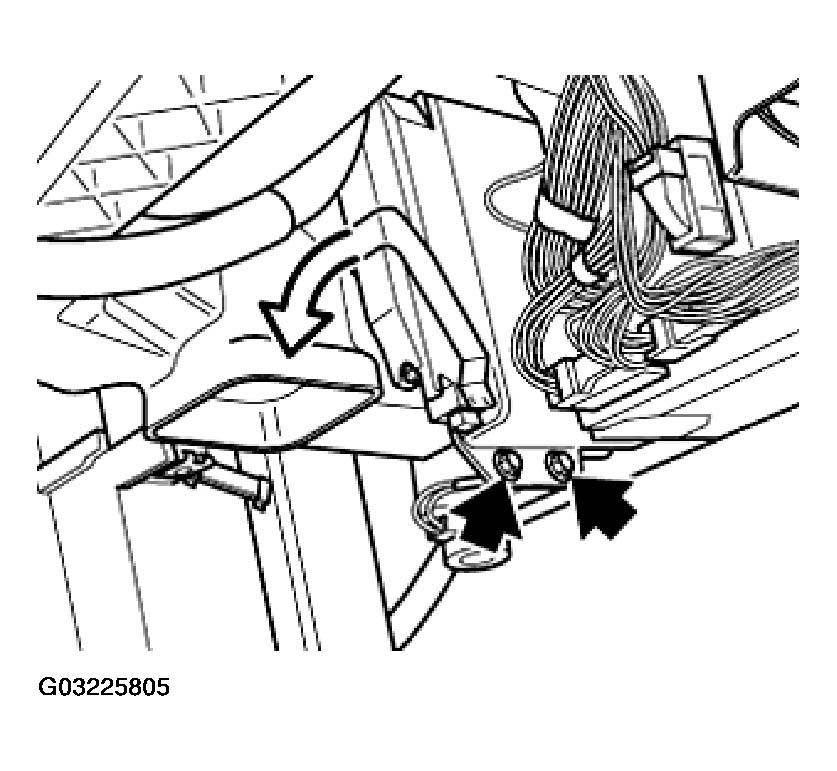

Fig 1: Unscrewing Bolts

Pull control unit down slightly to enable plug connection to be unlocked.

Remove control unit.
