34 32 881 Replacing front left or right brake hoses: Installation:

First tighten brake hose on brake caliper.

Move wheels into straight-ahead position.

Insert brake hose in bracket and screw onto brake pipe.

Tightening torque, refer to 34 32 1AZ BRAKE LINES .

CAUTION: Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.

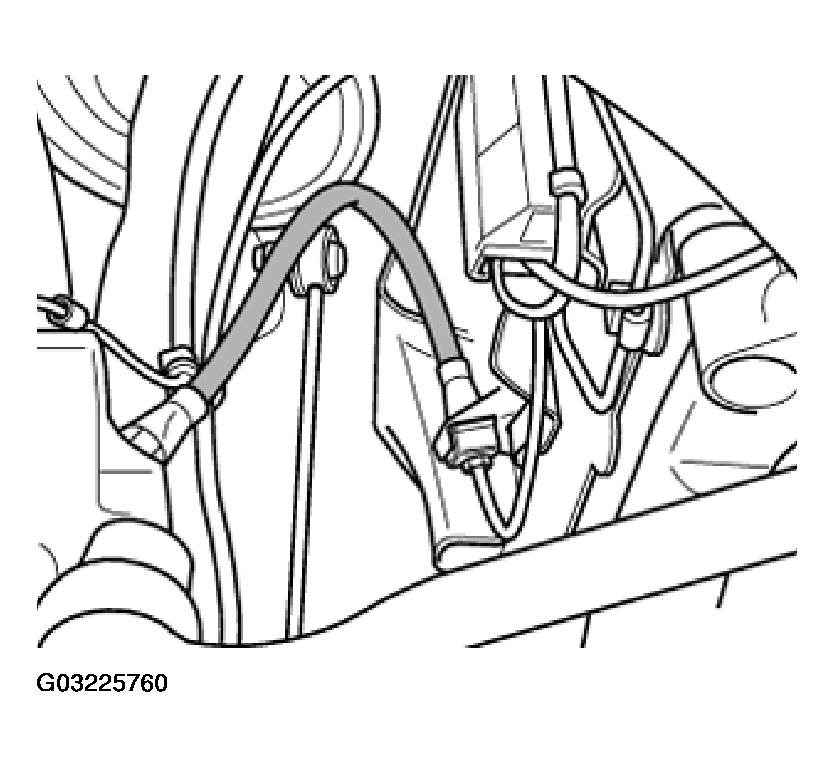

Fig 1: Identifying Brake Hose
G03225760
