67 61 510 Removing and installing or replacing drive with gear for actuating slide/tilt sunroof

Necessary preliminary tasks:

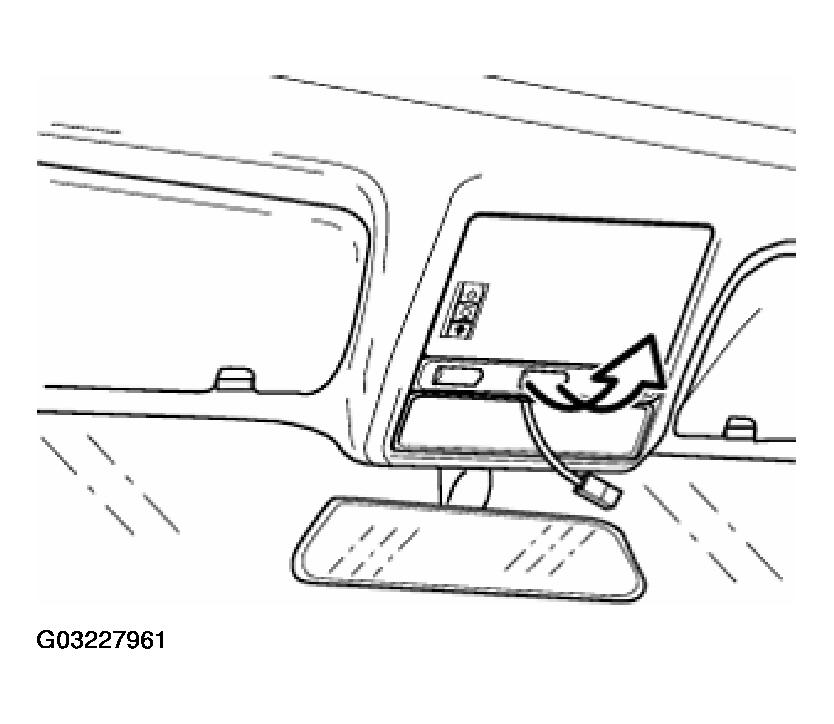

Remove panel and disconnect plug connection.

Fig 1: Removing Panel And Disconnecting Plug Connection

NOTE: Secure drive with gear for actuating slide/tilt sunroof (2) against falling out.

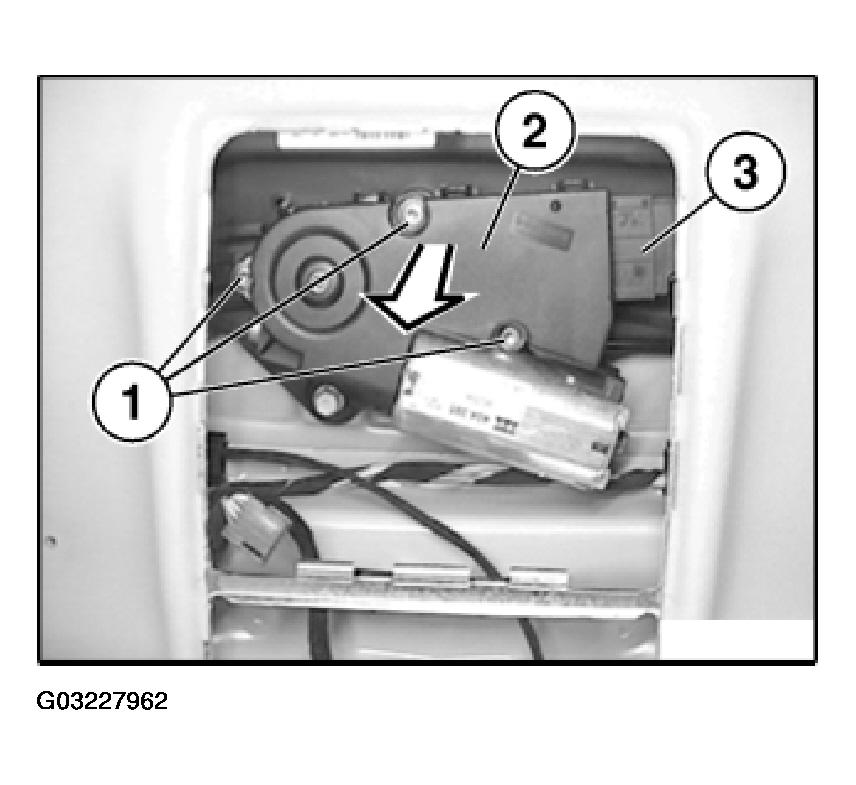

Release screws (1), tightening torque, refer to 54 13 1AZ 54 13 ELECTRIC SUN ROOF COMPONENTS .

NOTE: Screws (1) are microencapsulated.

Lower drive with gear for actuating slide/tilt sunroof (2).

Unlock plug connection (3), disconnect and remove drive with gear for actuating slide/tilt sunroof (2).

Fig 2: Removing Plug Connection

Installation:

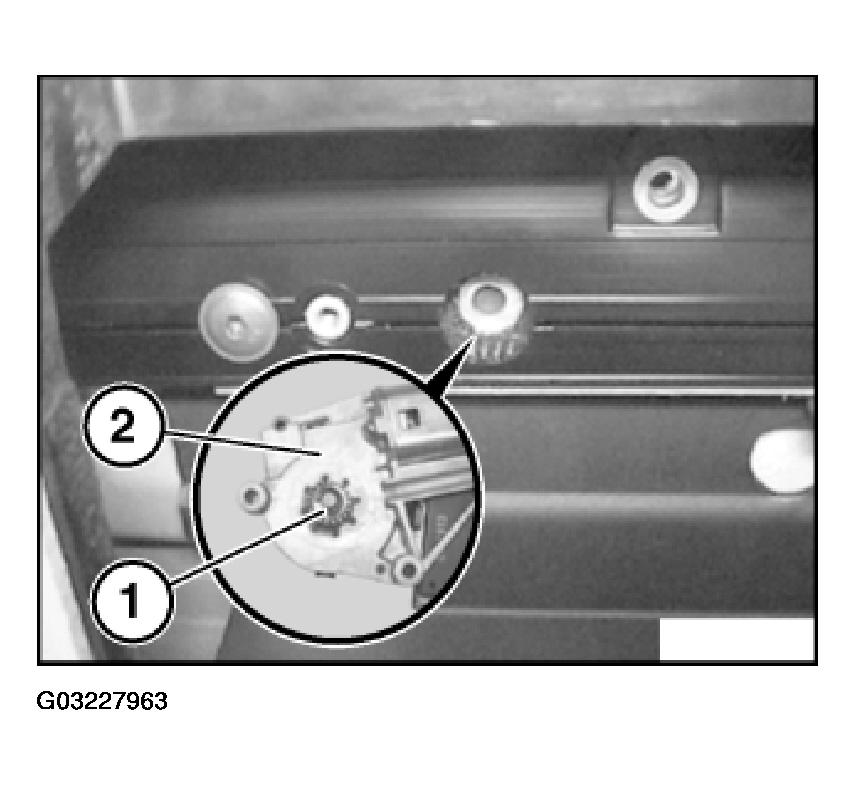

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) in gear teeth.

Fig 3: Inserting Gear Wheel Of Drive With Gear For Actuating Slide/Tilt Sunroof In Gear Teeth

E38 From 9/98 For Replacement Only:

Carry out programming/coding.

IMPORTANT: There is a risk of permanent battery discharge if programming/coding is not carried out!

NOTE: After installing/coding drive for actuating slide/tilt sunroof:
