54 12 496 Removing and installing / replacing wind deflector: Installation:

Tightening torque, refer to 54 12 7AZ 54 12 MECHANICAL SUN ROOF COMPONENTS .

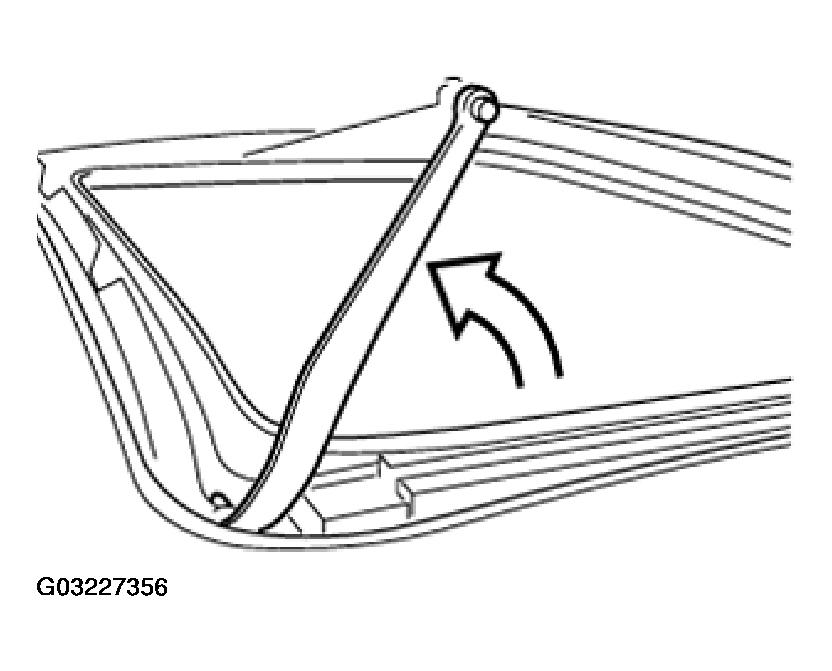

Turn left/right lever upwards and pull outwards to remove.

Press wind deflector slightly downwards/backwards (lifting spring bracket while doing so), lift out left and right sides and remove.

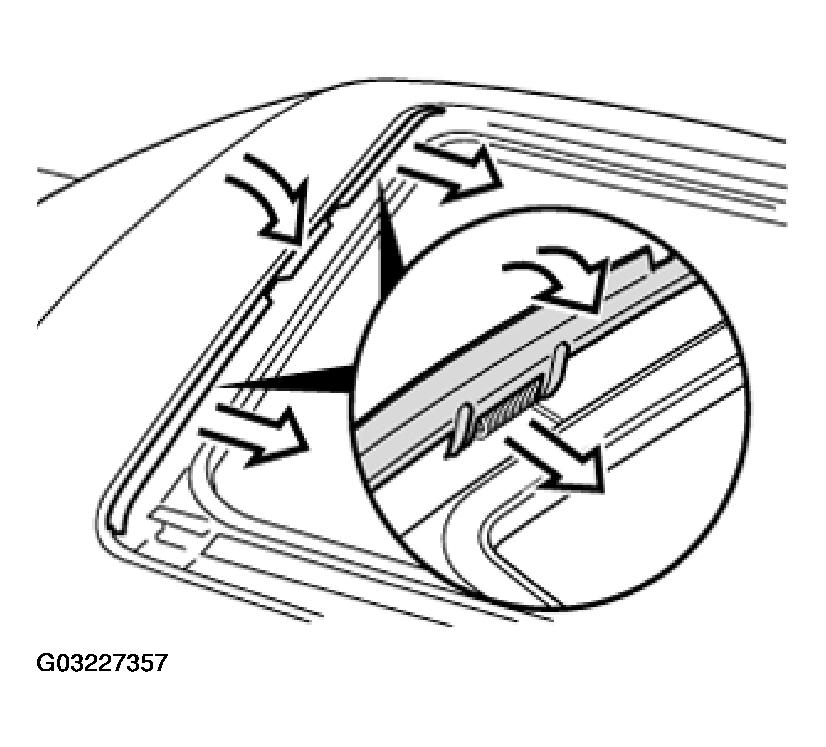

Fig 1: Pressing Wind Deflector Slightly Downwards/Backwards (Lifting Spring Bracket While Doing So)

Insert spring correctly.

Fig 1: Inserting Spring
