54 12 100 Removing and installing sun roof lid: Notes

CAUTION: Do not move floating roof liner with force. Follow procedure precisely because otherwise mechanism (guide) on slide/tilt sunroof cassette can be damaged. It then has to be replaced.

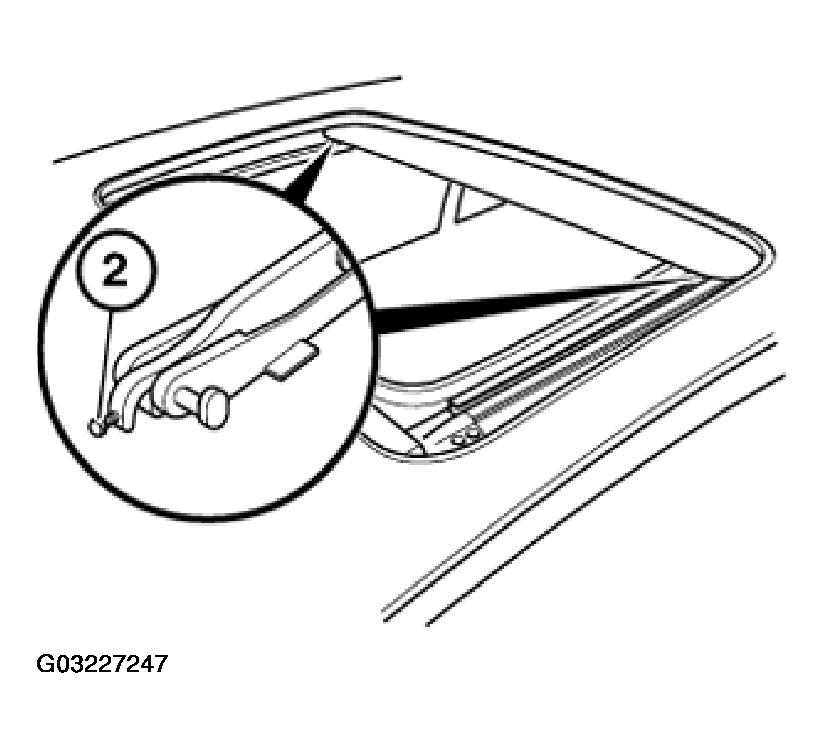

Open slide/tilt sunroof lid approx. 250 mm. Loosen screws (2) until aperture becomes free. Close slide/tilt sunroof lid.

Fig 1: Loosening Screws

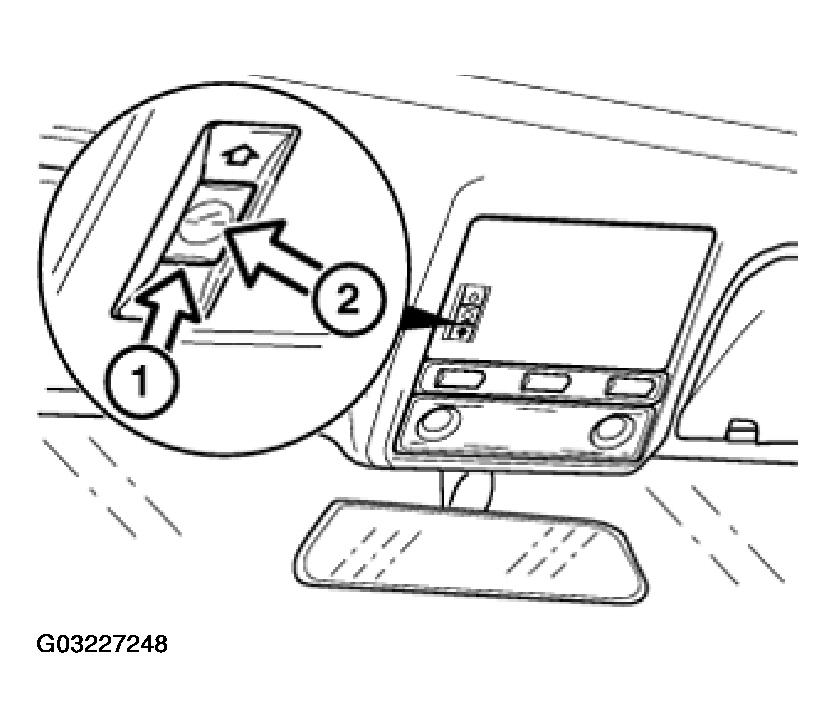

Press button to open roof briefly (1) then stop again (2) (inching function).

Fig 2: Pressing Button To Open Roof

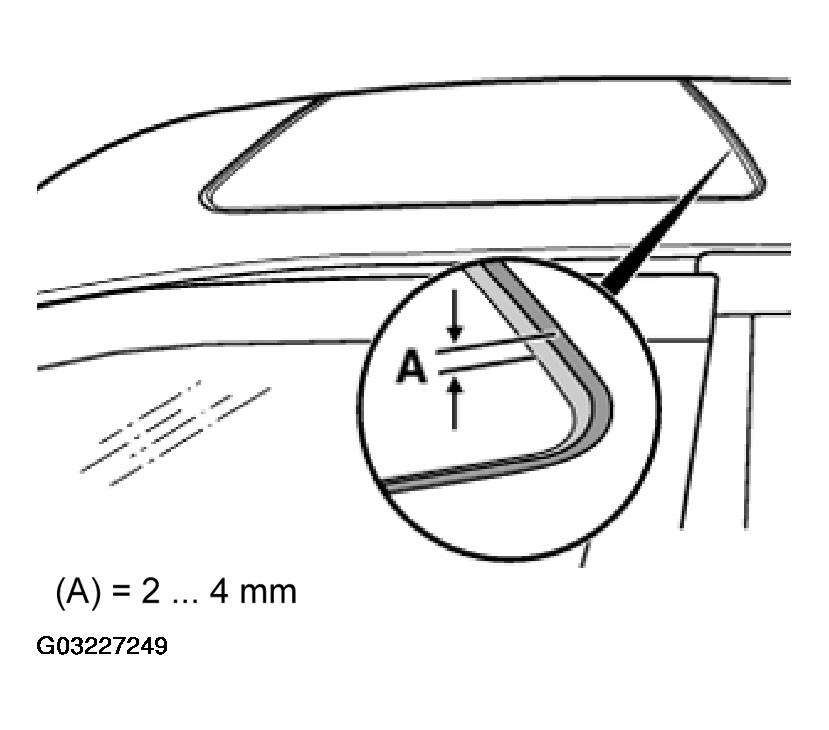

The slide/tilt sunroof lid must now lower at back by dimension (A). (A) = 2 ... 4 mm

Fig 3: Identifying Slide/Tilt Sunroof Lid Dimensions

CAUTION: Rapid sliding of floating roof liner can damage the mechanism (guide) of slide/tilt sunroof cassette. Do not move floating roof liner with force.

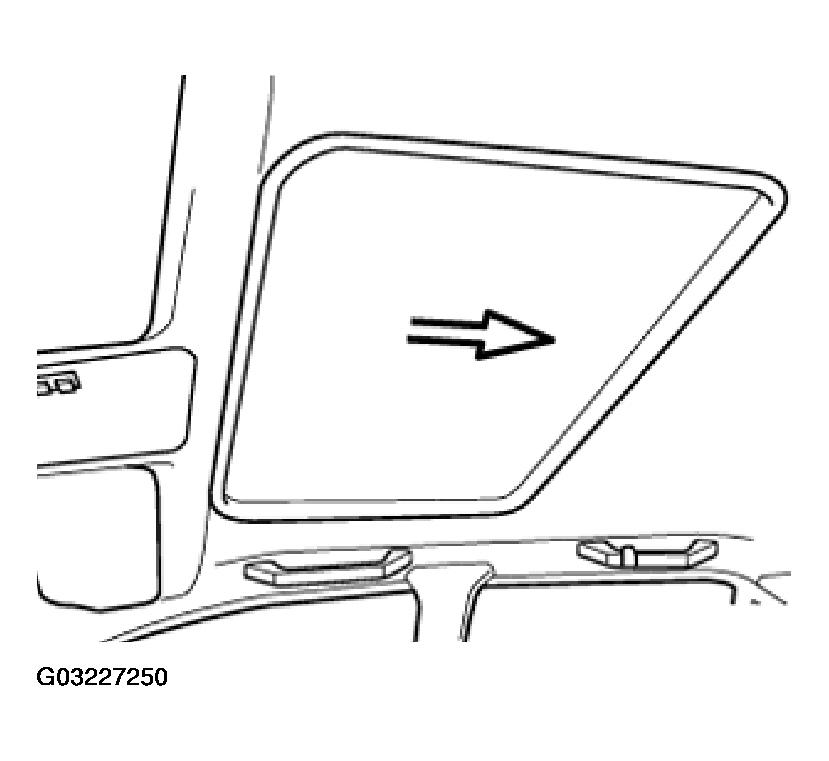

Slowly slide floating roof liner right back (with clean hands, or wearing protective gloves).

Fig 4: Sliding Floating Roof Liner Right Back

Shut sun roof (neutral position).

CAUTION: Slide/tilt sunroof can now no longer be moved in "OPEN" direction (damage to mechanism).

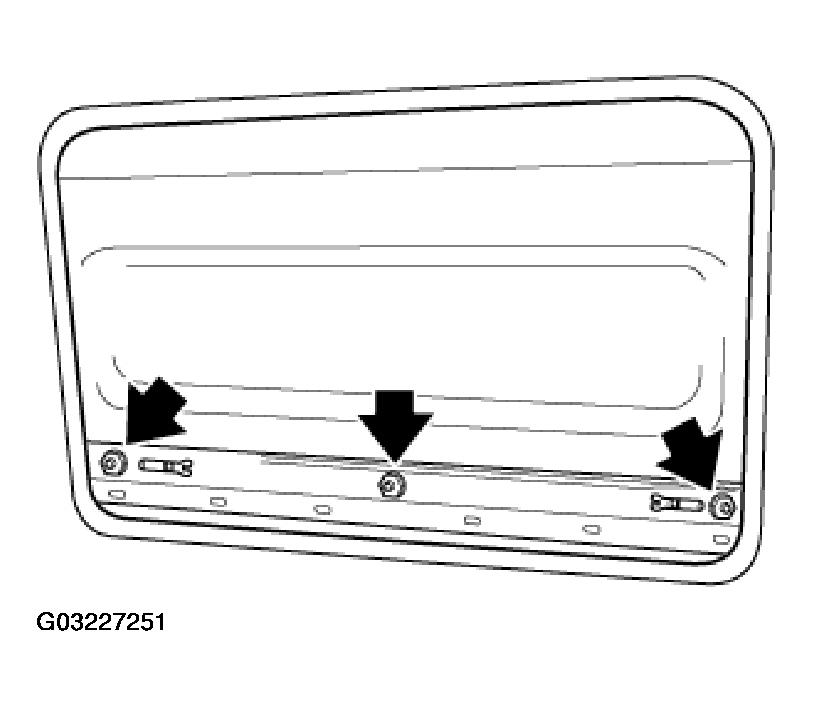

Unscrew nuts.

Lift slide/tilt sunroof lid upwards and backwards to remove.

Fig 5: Lifting Slide/Tilt Sunroof Lid
