54 12 ... Replacing stop on headliner for glass sliding/tilting sunroof lid on left or right: Notes

Remove boot for glass sliding/tilting sunroof lid, left and right, refer to 54 12 015 REPLACING BELLOWS FOR GLASS SLIDING/TILTING SUNROOF, LEFT OR RIGHT  .

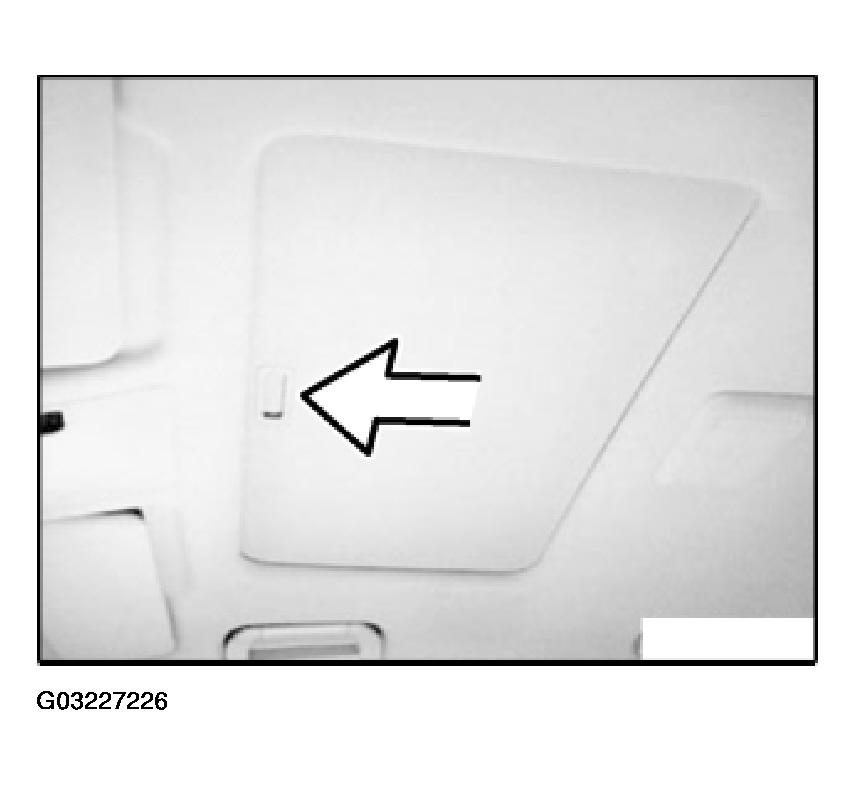

Slowly pull roof-lining frame completely forwards.

Fig 1: Pulling Roof-Lining Frame

Version with screw:

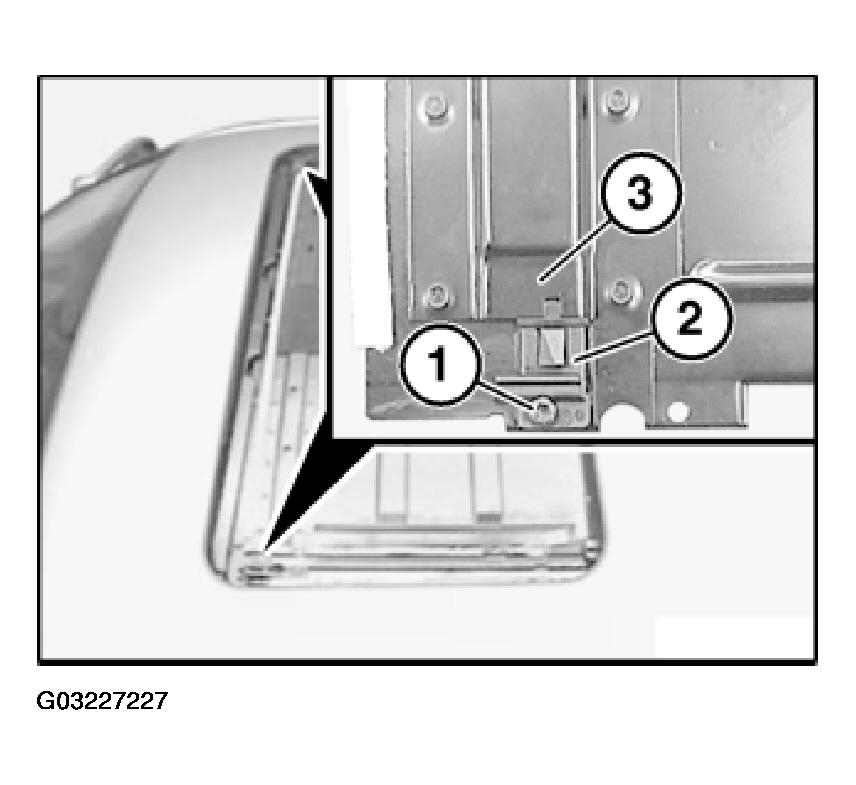

Release screw (1) and pull out stop (2) on left/right from headliner (3).

Fig 2: Pulling Out Stop On Left/Right From Headliner
