54 12 ... Replacing stop on headliner for glass sliding/tilting sunroof lid on left or right: Installation:

Tightening torque, refer to 54 12 8AZ 54 12 MECHANICAL SUN ROOF COMPONENTS .

Version without screw:

Pull out stop (1) on left/right from headliner (2) (if necessary, loosen bond with a screwdriver).

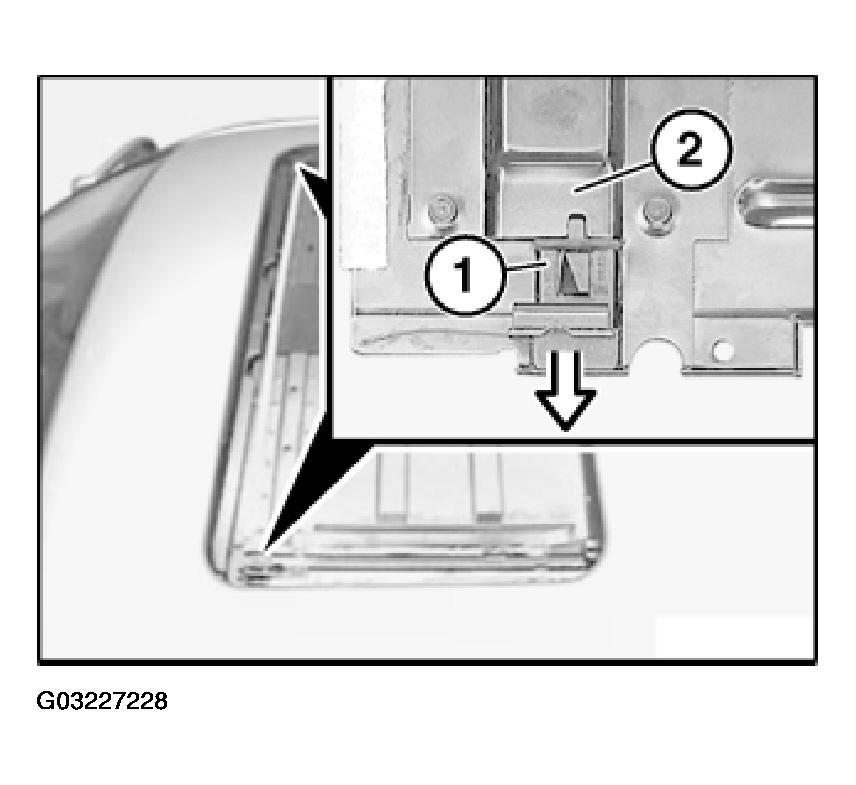

Fig 1: Pulling Out Stop On Left/Right From Headliner

Headliner with elongated hole: Insert guide (1) of stop (2) into elongated hole (3) in headliner (4).

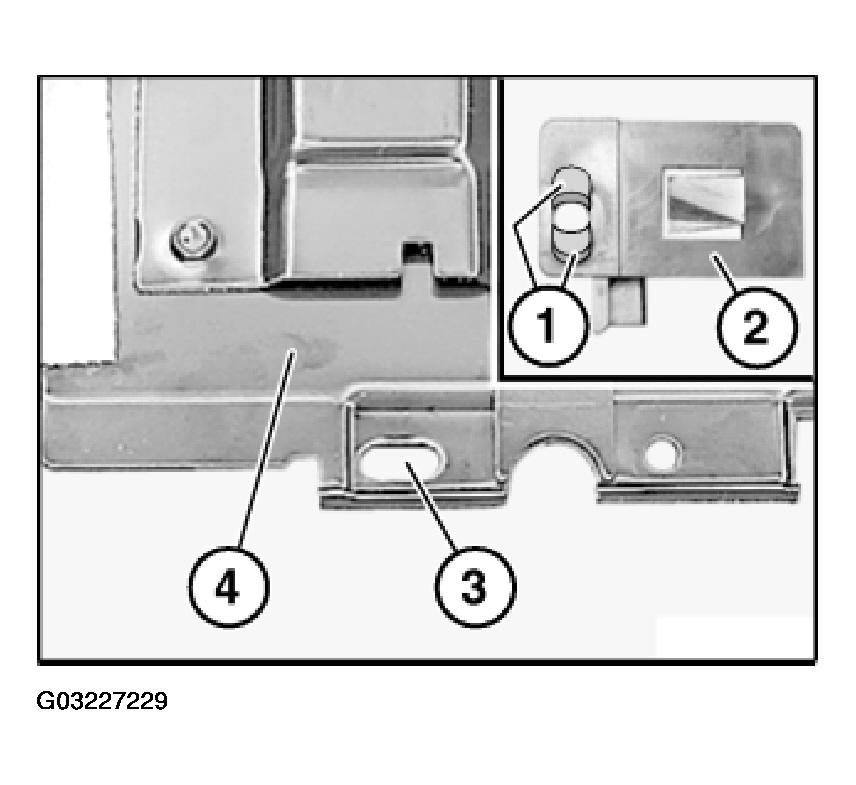

Fig 2: Inserting Guide (1) Of Stop (2) Into Elongated Hole (3) In Headliner (4)

Headliner with bore:

Grind guide (1) of stop (2) (because only bore (3) and no elongated hole is present).

Insert stop (2) into headliner (4) and secure with screw for stop.

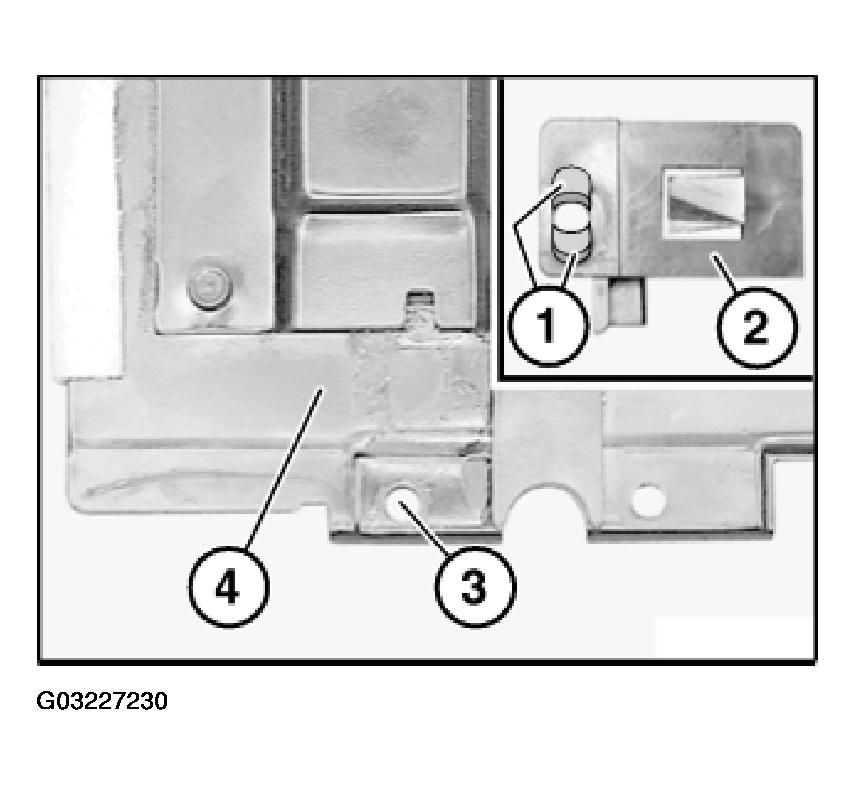

Fig 3: Inserting Stop Into Headliner
