54 12 ... Removing and installing / replacing float switch for left or right gutter on glass slide/tilt sunroof: Installation:

Tightening torque, refer to 540 12 7AZ 54 12 MECHANICAL SUN ROOF COMPONENTS .

Turn lever upwards and remove to the outside.

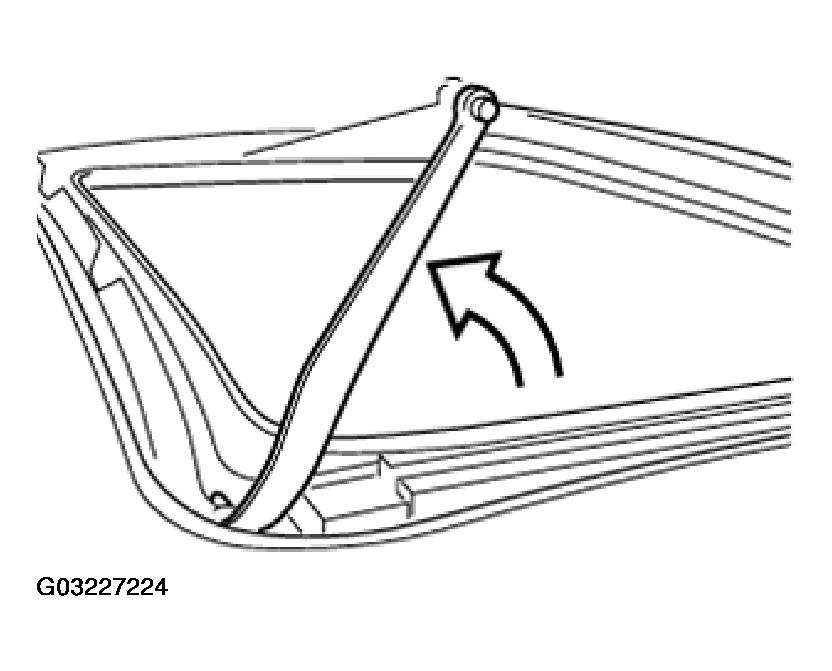

Fig 1: Turning Lever Upwards And Removing To The Outside

Release screw (1) and remove float (2).

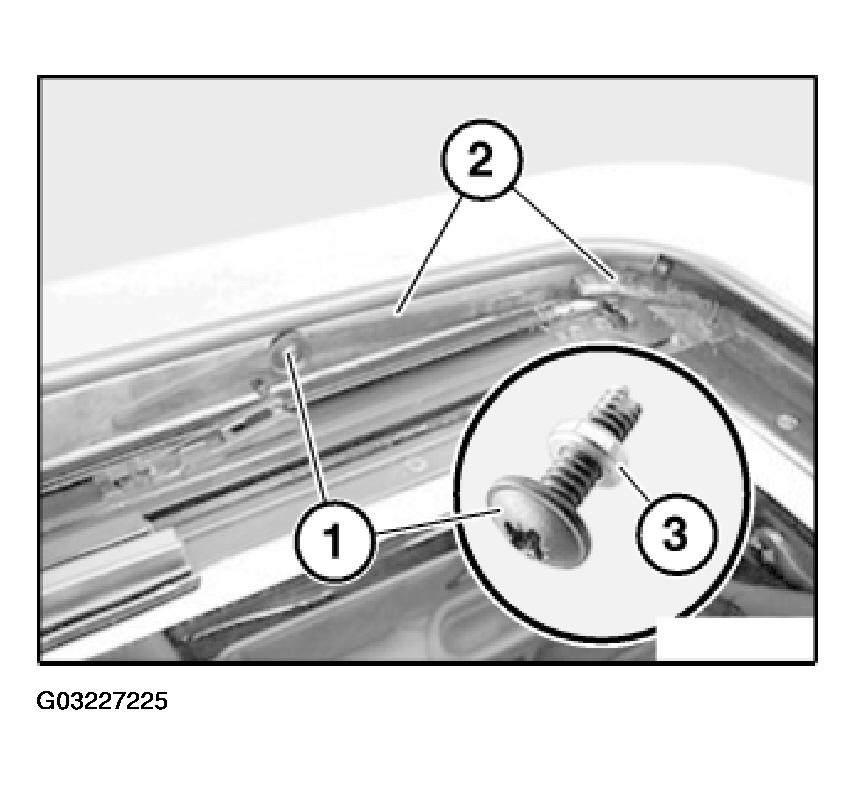

Fig 2: Identifying Screw, Float And Bushing

Check sealing surfaces and remove any contaminants (use vacuum cleaner only, do not blow through with compressed air).

Fit screw (1) with spacer bushing (3). Check float for ease of movement. Refer to Figure .
