52 25 410 Replacing back-rest cover for left or right rear seat (normal/electric): Notes

Remove rear-seat back-rest, refer to 52 25 015 REMOVING AND INSTALLING / REPLACING BACKREST FOR REAR SEAT (NORMAL/ ELECTRIC)  .

Unfasten nut and pull panel backwards to remove.

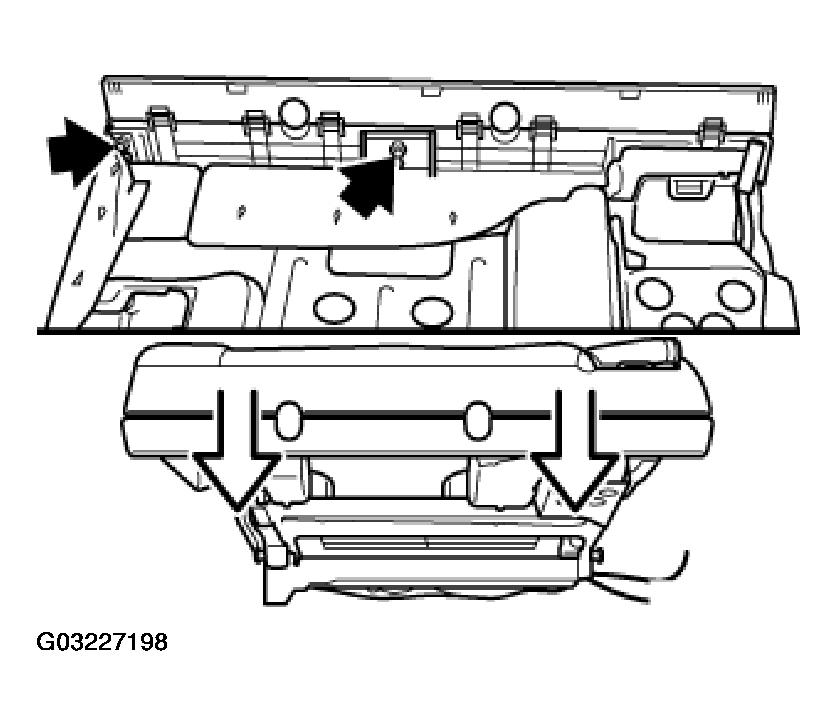

Fig 1: Removing Panel Nut
G03227198

Disconnect bottom of cover and expose cable.

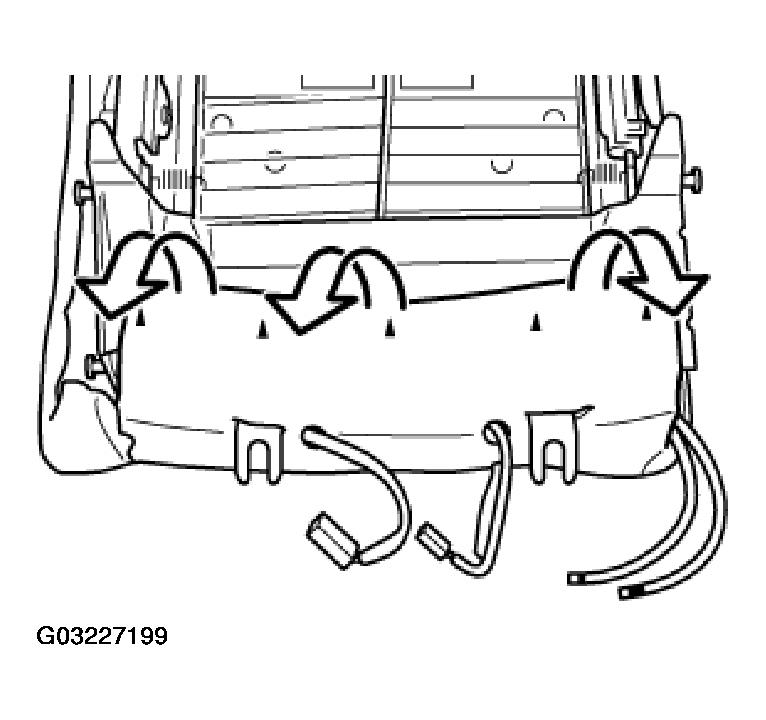

Fig 2: Disconnecting Bottom Of Cover And Expose Cable
G03227199

Cut through clips (1).
