52 25 008 Removing and installing / replacing left or right side section of rear seat backrest (normal/ electric): Notes

Remove rear seat, refer to 52 25 005 REMOVING AND INSTALLING / REPLACING REAR SEAT (NORMAL/ ELECTRIC)  .

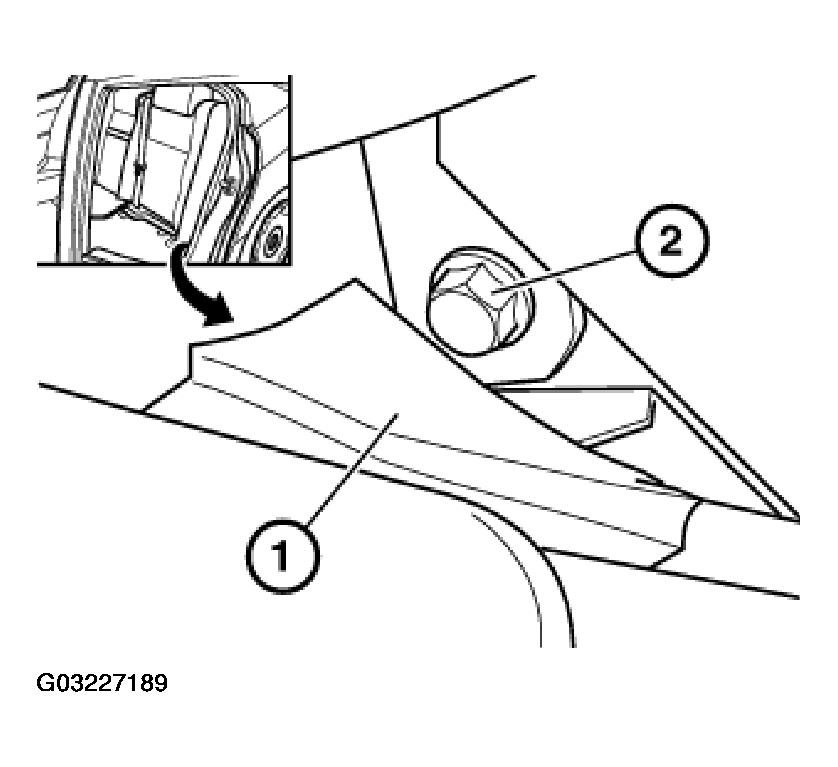

Pull acoustic insulation forwards (1) and unfasten screw (2).

Fig 1: Pulling Acoustic Insulation Forwards And Unfasten Screw

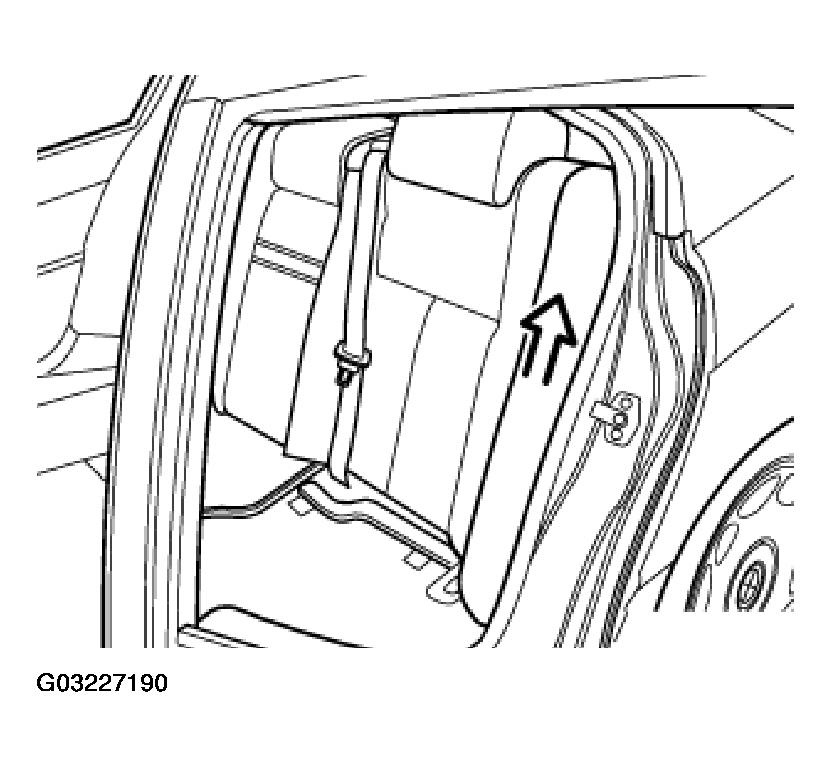

Pull side section of backrest upwards to remove.

Fig 2: Removing Side Section Of Backrest
