52 25 005 Removing and installing / replacing rear seat (normal/ electric): Notes

Rear seat with seat heating and/or electrically adjustable headrests:

If necessary, unclip rear seat to maximum setting (dimension A), unlock connector and disconnect.

(A) = 150 mm.

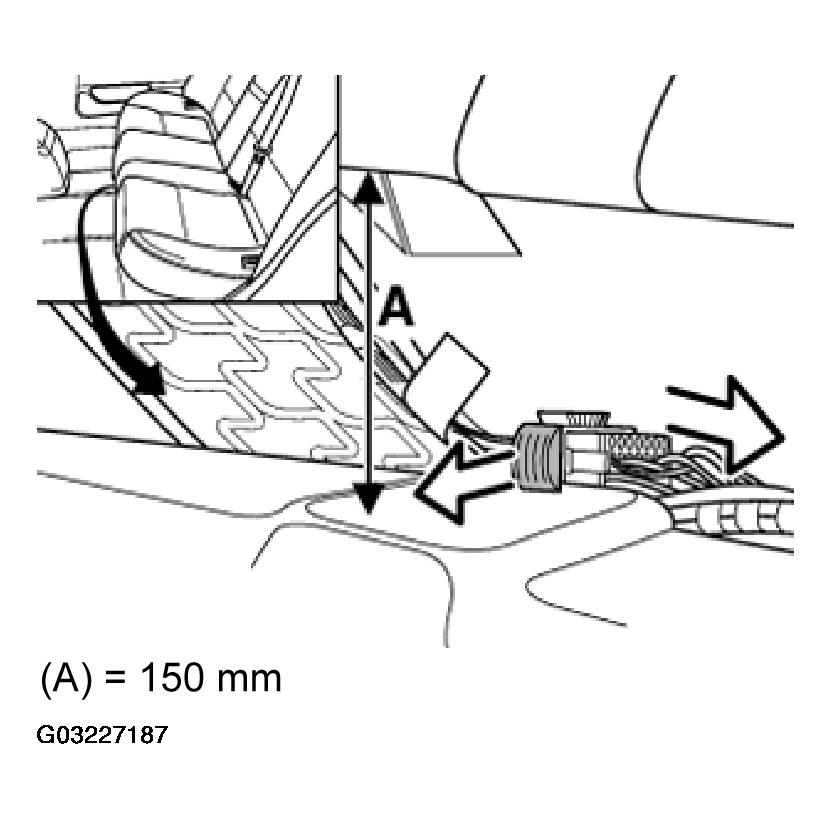

Fig 1: Removing Rear Seat To Maximum Setting (Dimension A)
G03227187
