Only passenger seat (replacement of sensor mat):

Remove sensor mat (1) for passenger seat allocation identification, ensuring that no large areas of foam at damaged marked points (2) (malfunction of passenger seat allocation identification). Guide connector through the bore (3).

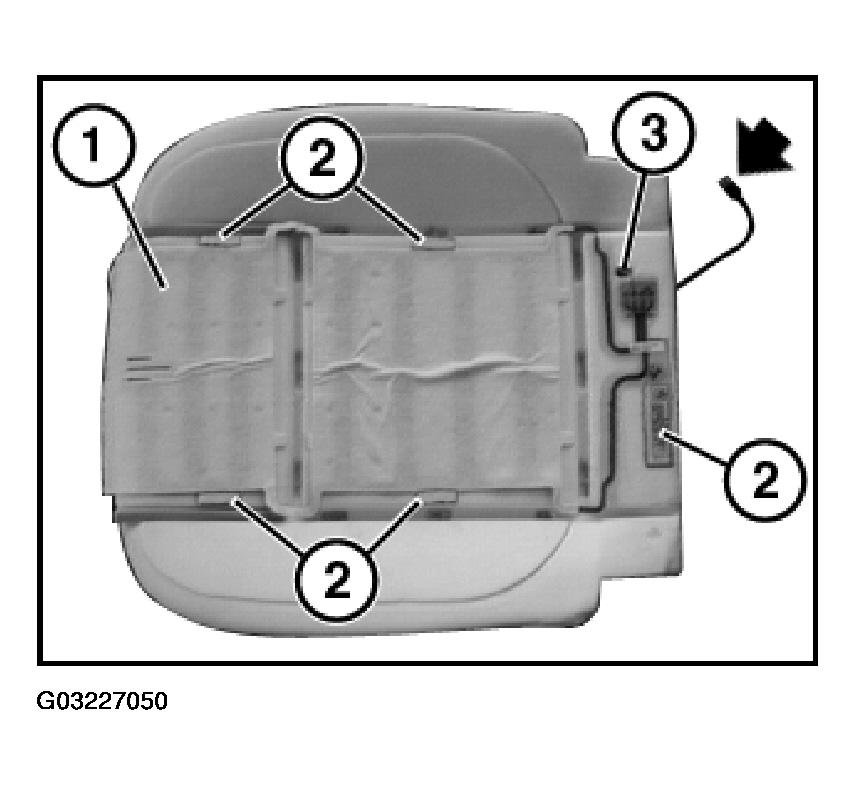

Fig 1: Removing Sensor Mat For Passenger Seat Allocation Identification

Folds as illustrated in diagram are not permitted!
