52 13 014 Replacing Bowden cable for longitudinal adjustment on left or right front seat (normal/manual): Notes

Remove front seat, refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL)  .

Remove clips (1) and pull Bowden cable forwards to remove.

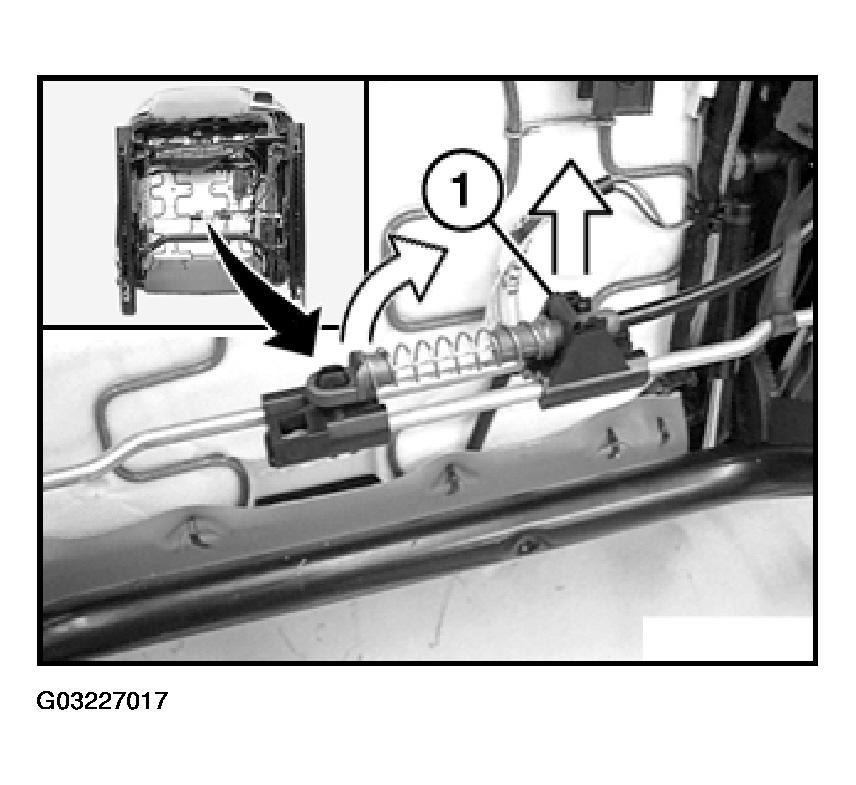

Fig 1: Removing Clips And Pulling Bowden Cable Forwards

Slide Bowden cable (1) out of guide (2). Twist Bowden cable through 90° and lift out of support (4).
