Removal of complete back-rest:

Remove headrest, refer to 52 13 390 REMOVING AND INSTALLING / REPLACING FRONT HEADREST (NORMAL/ MANUAL)  .

Remove bottom of rear panel on front seat, refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT)  .

Remove connector and cut through cable connector.

Fig 1: Removing Connector And Cut Through Cable Connector

Cut through cable connector (1).

Remove hose (2) from hose connector.

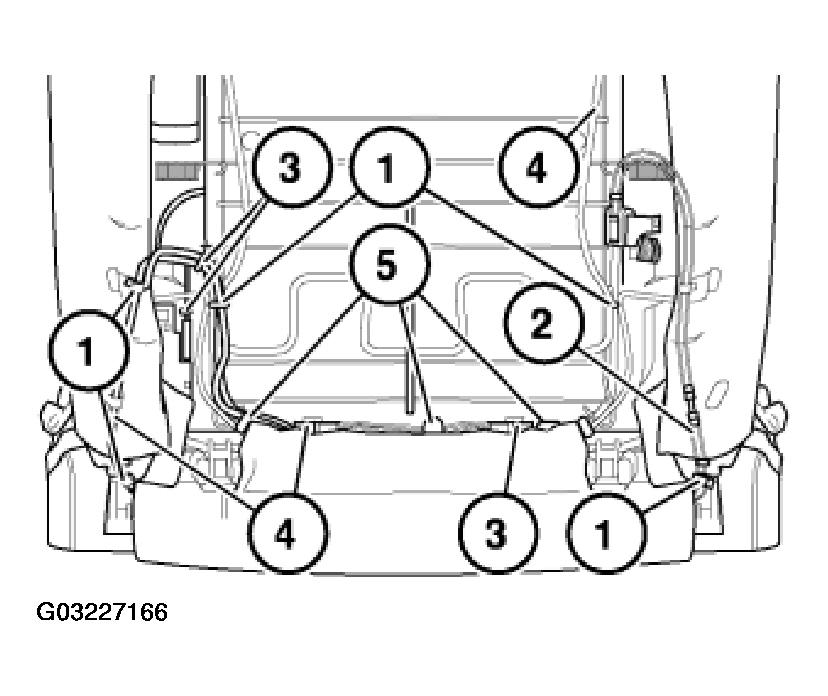

Fig 2: Removing Hose From Hose Connector

Remove or cut through connector (3).

Remove wiring harness (4) from the clips (5) and remove complete unit from the back-rest.

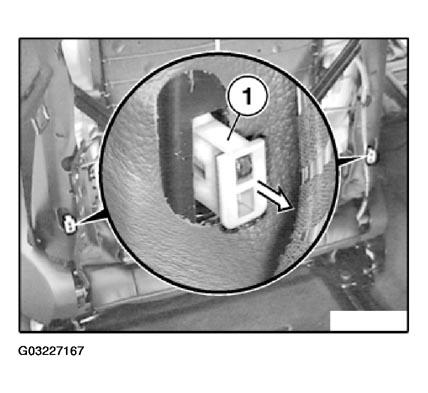

Pull retaining clip (1) off left/right release lever.

Fig 3: Pulling Retaining Clip Off Left/Right Release Lever
