52 17 202 Removing and installing/replacing rear panel on front seat backrest (luxury seat with rear-compartment-oriented equipment): Installation:

The springs must be correctly located in the rear panel supports and must not be bent.

If necessary, replace defective clips.

Start by clipping in at bottom.

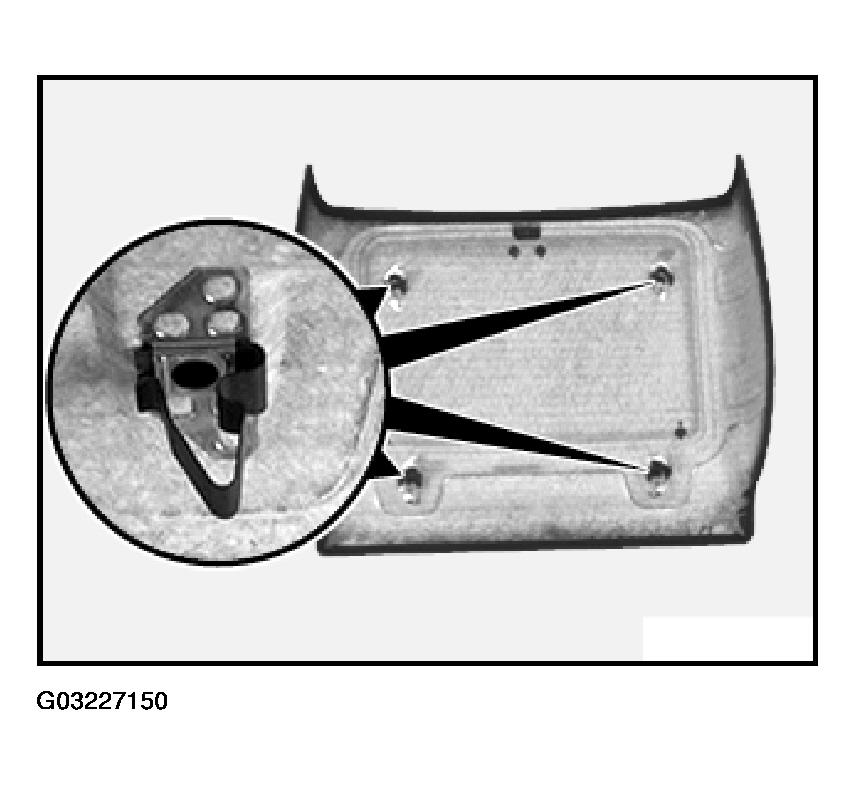

Fig 1: Identifying Springs Location In Rear Panel Supports
G03227150
