52 17 202 Removing and installing/replacing bottom rear panel on front seat backrest (luxury seat): Notes

NOTE: This is also applicable to L7 driver's seat with video system in rear compartment. Head-rest must be moved as far forwards as possible. Remove top rear panel, refer to 52 17 200 REMOVING AND INSTALLING/REPLACING TOP REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .

Pull inside edge of rear panel inwards/backwards (1) and knock firmly inwards (2) (spring disconnected at bottom inside edge).

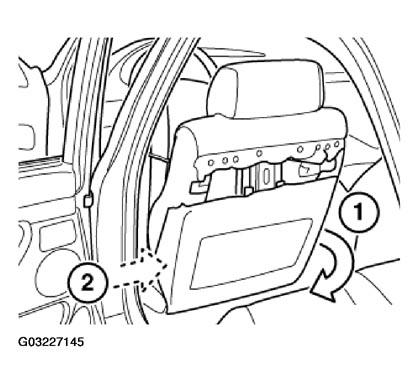

Fig 1: Pulling Inside Edge Of Rear Panel Inwards/Backwards And Knock Firmly Inwards

Press inside edge of rear panel outwards (3) and pull outwards and backwards (4) (spring disconnected at bottom outside edge).

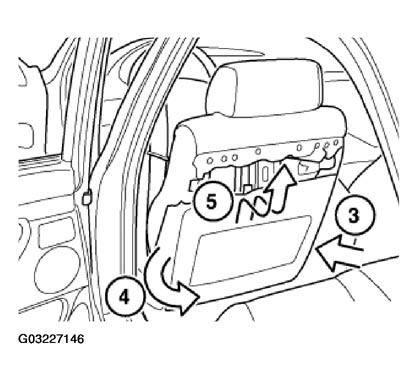

Fig 2: Pressing Inside Edge Of Rear Panel Outwards

Lift rear panel upwards/backwards (5).
