52 17 041 Removing and installing / replacing inside cover from left or right front seat (comfort)
Remove front seat, refer to 52 17 000 REMOVING AND INSTALLING FRONT SEAT (COMFORT) .

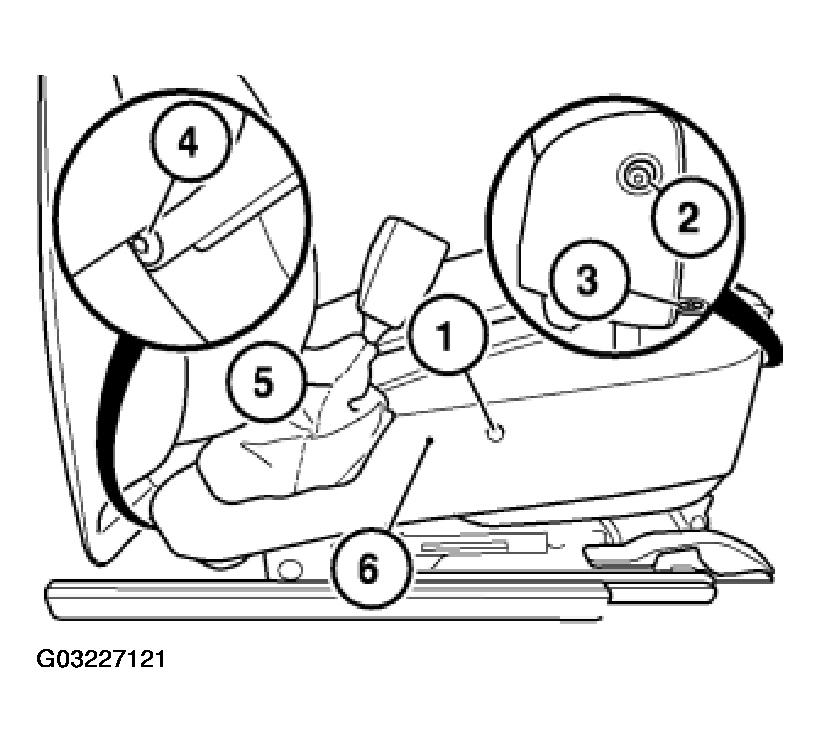

Unscrew screws (1) and (2).
Unfasten clips (3) and (4).
Open finisher cover (5) (burr fastener) and remove cover (6).
If rear clip is not accessible:
If necessary disconnect lower back wall (without dismantling top back wall), refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .
