65 77 550 Removing and installing/replacing collision sensor for left or right side airbag

WARNING: Note airbag safety instructions! Incorrect handling can activate airbag and cause injury.

Turn ignition key to 0 position.

Remove left or right front seat.

Remove entrance cover strip.

Fold up carpet in area of front seat. If necessary, remove rear compartment heating duct.

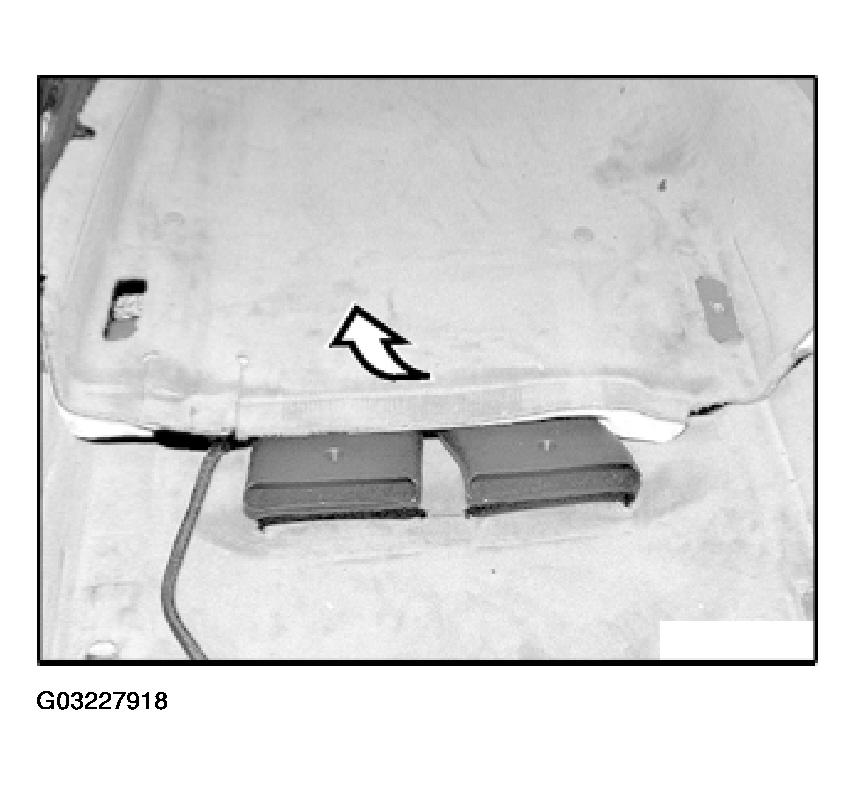

Fig 1: Folding Up Carpet In Area Of Front Seat

Disconnect connector.

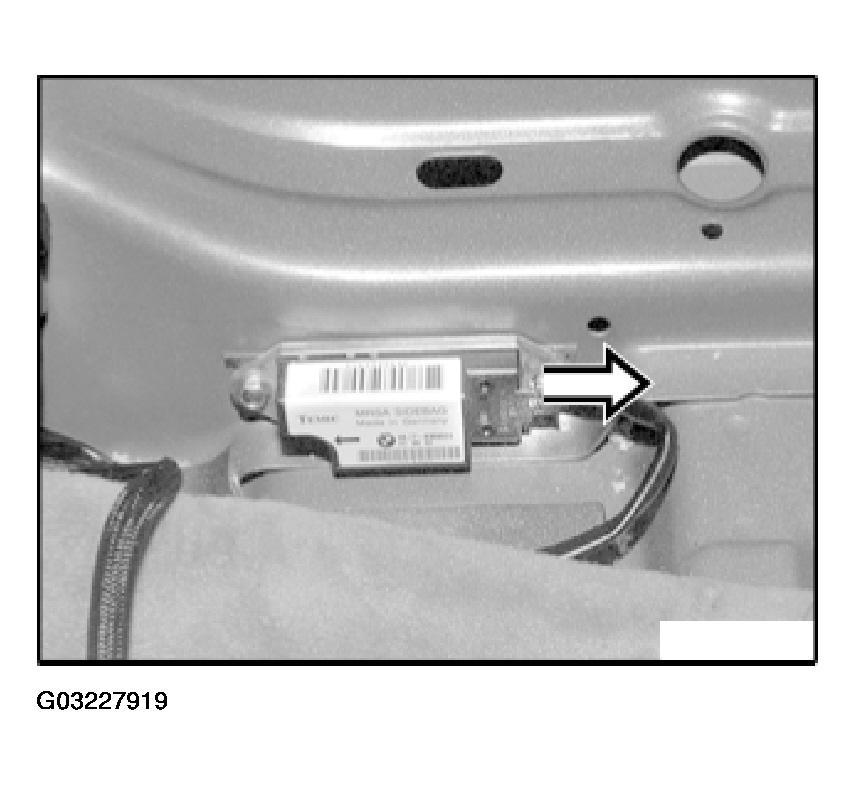

Fig 2: Disconnecting Connector

Release screws and remove impact sensor for side airbag.

Installation:

Arrow (1) on impact sensor for side airbag must point to sill.

Observe tightening torque, refer to 65 77 2AZ 65 77 AIRBAG TRIGGERING CONTROL .

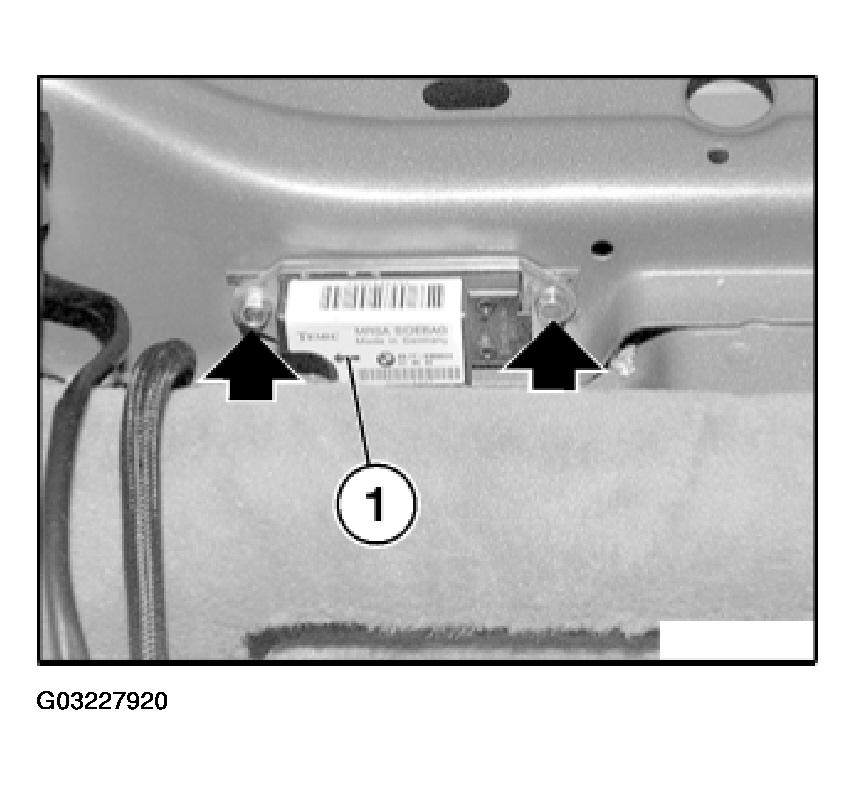

Fig 3: Identifying Arrow On Impact Sensor For Side Airbag
