63 12 034 Removing and installing or replacing lens/reflector for left headlight

Remove complete headlight, refer to 63 12 001 REMOVING AND INSTALLING/REPLACING COMPLETE LEFT-HAND HEADLIGHT ASSEMBLY  .

Unfasten clips and lift off sealing frame.

Fig 1: Unfastening Clips And Lifting Off Sealing Frame

Unfasten screws and lift holder forwards to remove.

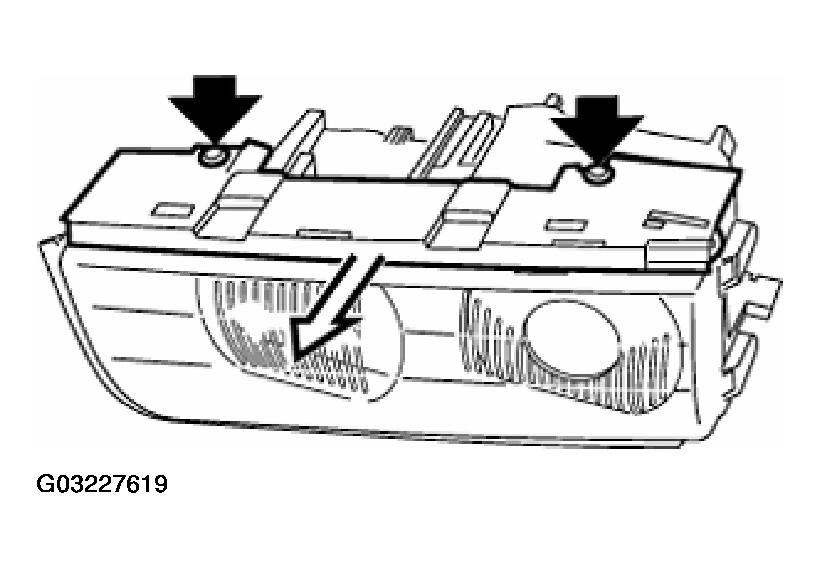

Fig 2: Unfastening Screws And Lifting Holder

Unfasten clips at top and bottom and remove lens/reflector.

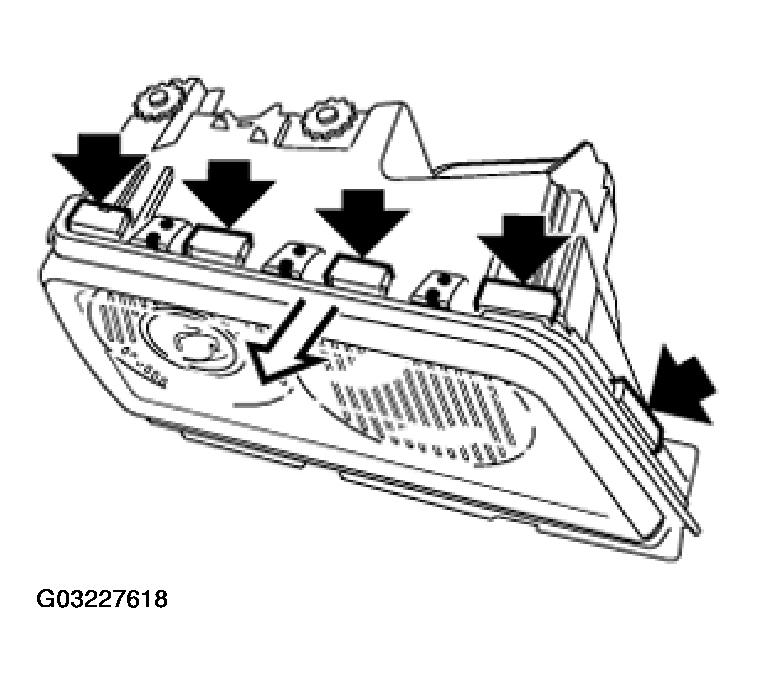

Fig 3: Unfastening Clips At Top And Bottom
