63 12 001 Removing and installing/replacing complete left-hand headlight assembly: Notes

Remove turn signal, refer to 63 13 150 REMOVING AND INSTALLING/REPLACING COMPLETE FRONT LEFT OR RIGHT TURN SIGNAL LAMP  .

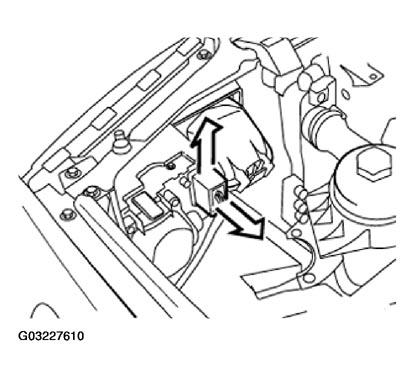

Lift up unlocking unit and remove connector.

Fig 1: Lifting Up Unlocking Unit And Remove Connector

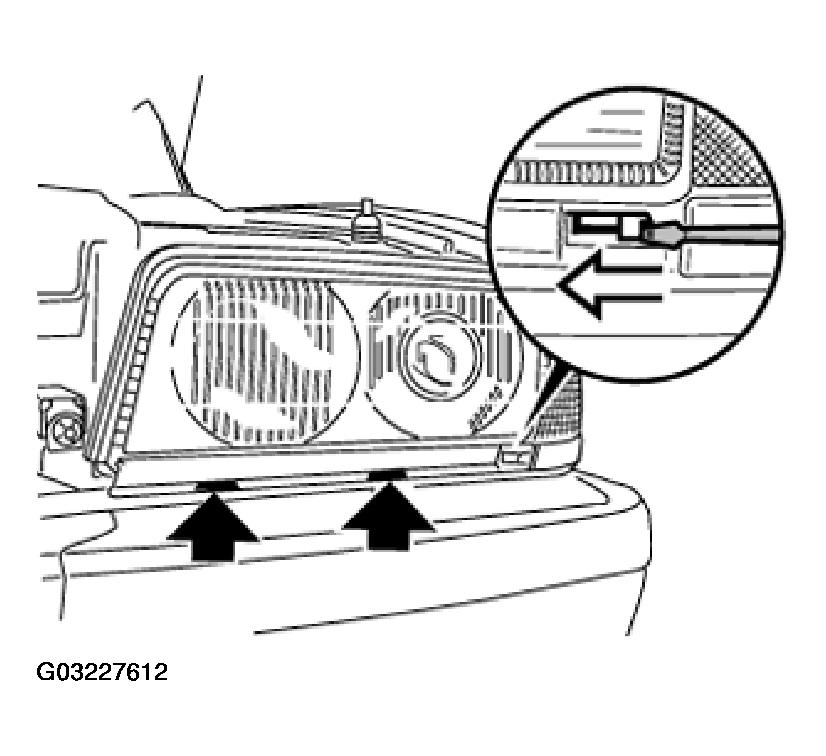

Lift up detent hook, slide grill towards central grill and lift out.

Fig 2: Lifting Up Detent Hook, Sliding Grill Towards Central Grill

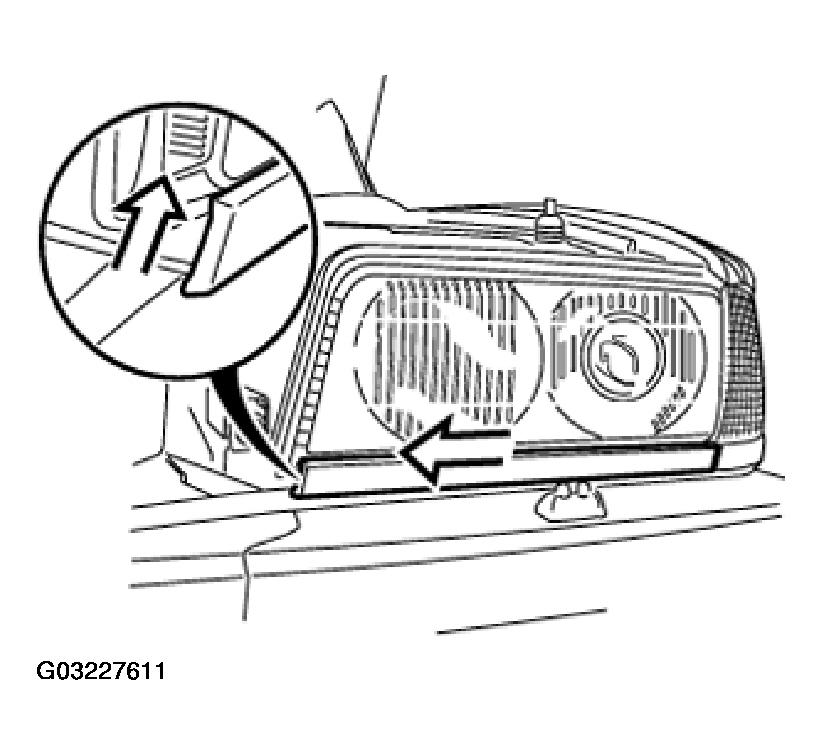

Slide locking unit inwards. Unscrew bolts.

Fig 3: Sliding Locking Unit

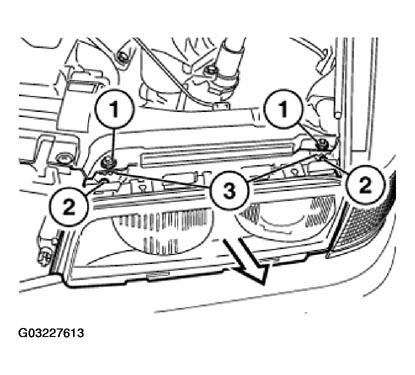

Loosen nuts (1), unfasten screws (2) and relieve tension on adjusting nuts (3). Lift headlights forwards to remove.

Fig 4: Loosening Nuts (1), Unfastening Screws (2) And Relieving Tension On Adjusting Nuts (3)
