63 21 180 Removing and installing or replacing complete tail light assembly

Open side trim and fold downwards.

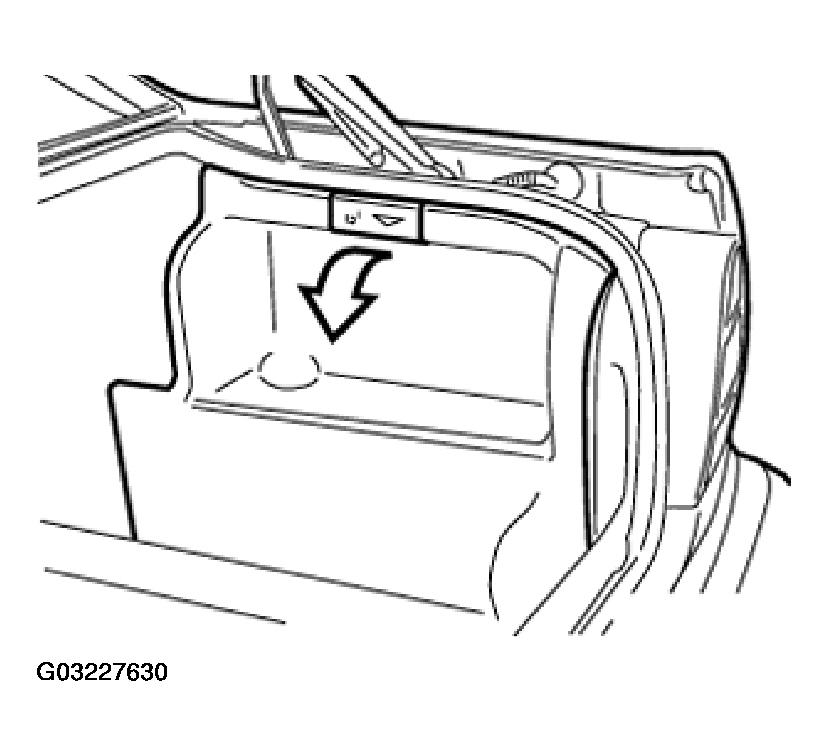

Fig 1: Opening Side Trim

Pull off connector. Unscrew nuts and remove taillight assembly by pulling out.

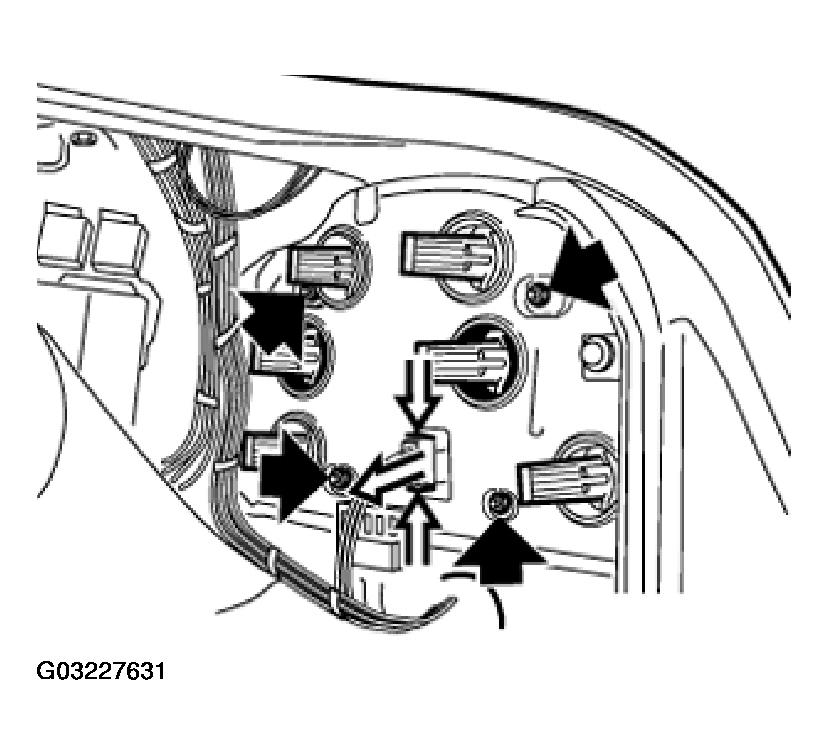

Fig 2: Removing Taillight Assembly
