63 99 487 Replacing bulb for inside door handle light, front left or right

Remove door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Disconnect LED with cable (1) from light housing (2).

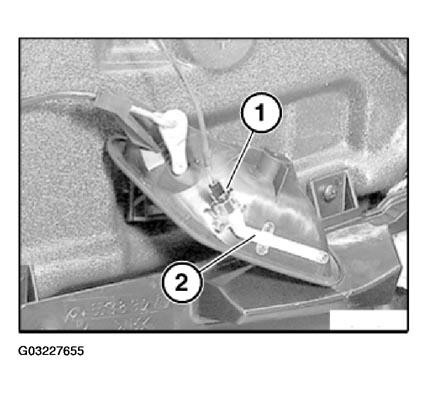

Fig 1: Disconnecting LED With Cable From Light Housing

Cut LED cable (1) to length (A) from door wiring harness.

(A) = 10 cm

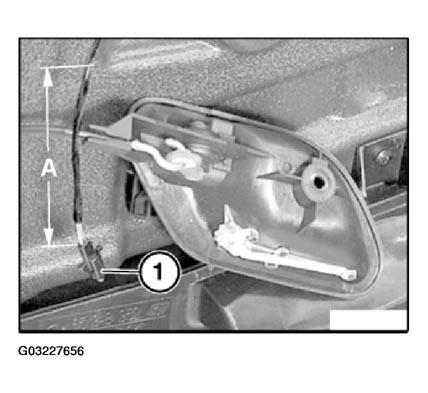

Fig 2: Cutting LED Cable To Length From Door Wiring Harness

Cut cable ends on LED spare part to length (B).

(B) = 16 cm

Connect door wiring harness and LED cable with butt connectors and shrinkable tubes.

Secure repair area on door wiring harness in position.

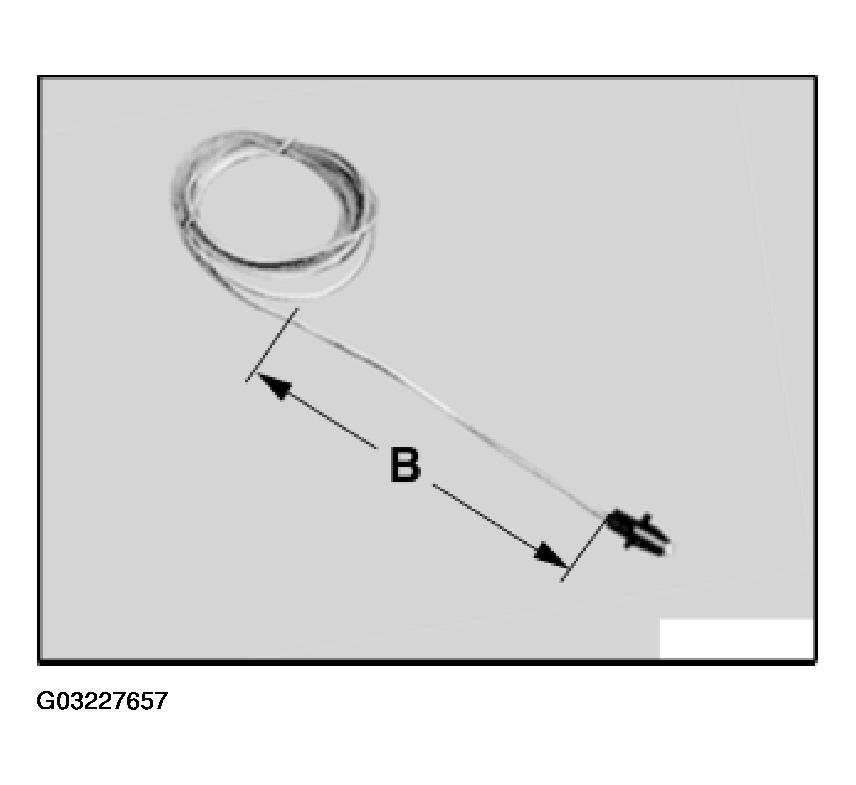

Fig 3: Cutting Cable Ends On Led Spare Part
