63 99 076 Replacing lamp for left xenon light.

Release clip and take off bulb cover.

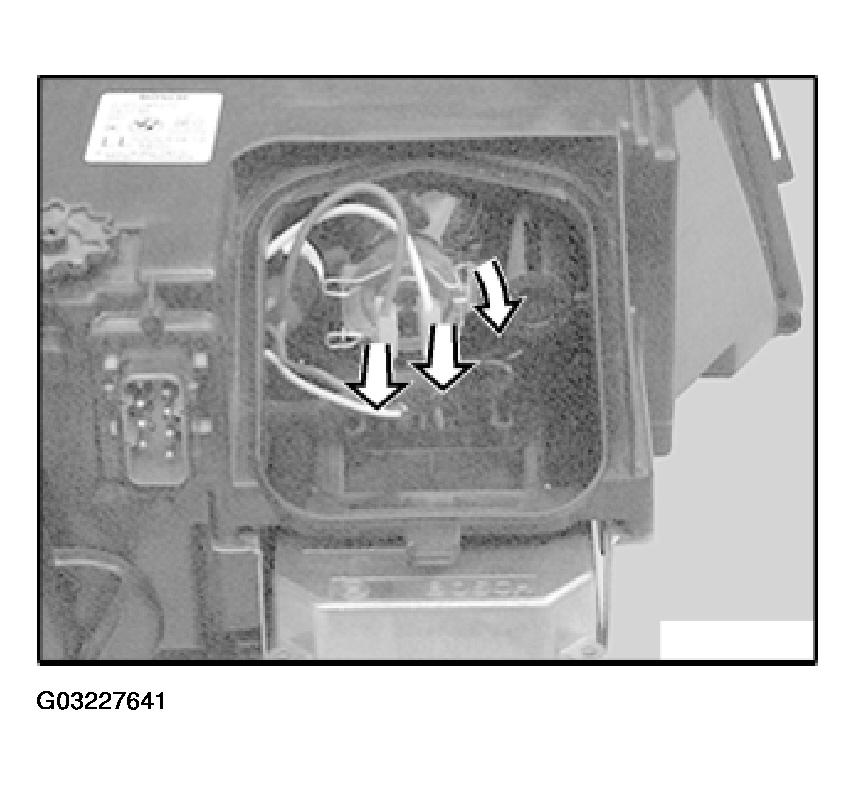

Fig 1: Releasing Clip And Take Off Bulb Cover
G03227641

Pull off connector on the lamp, disconnect spring wire bracket and remove lamp.

IMPORTANT: Do not take hold of glass part of bulb with bare fingers. Only take hold of bulb on base or with a clean cloth or packaging of light bulb. Note type of bulb, refer to INTERIOR LIGHTS .
