63 99 ... Replacing bulb for refrigerator

CAUTION: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Open refrigerator.

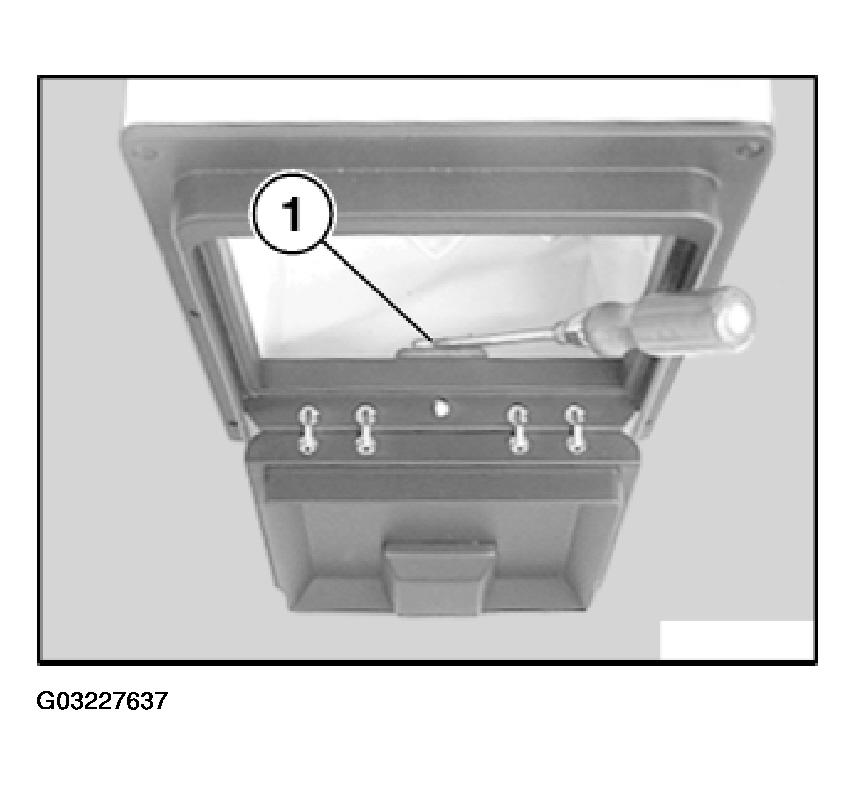

Press cover for bulb at upper groove (1) inwards.

Fig 1: Pressing Cover For Bulb At Upper Groove

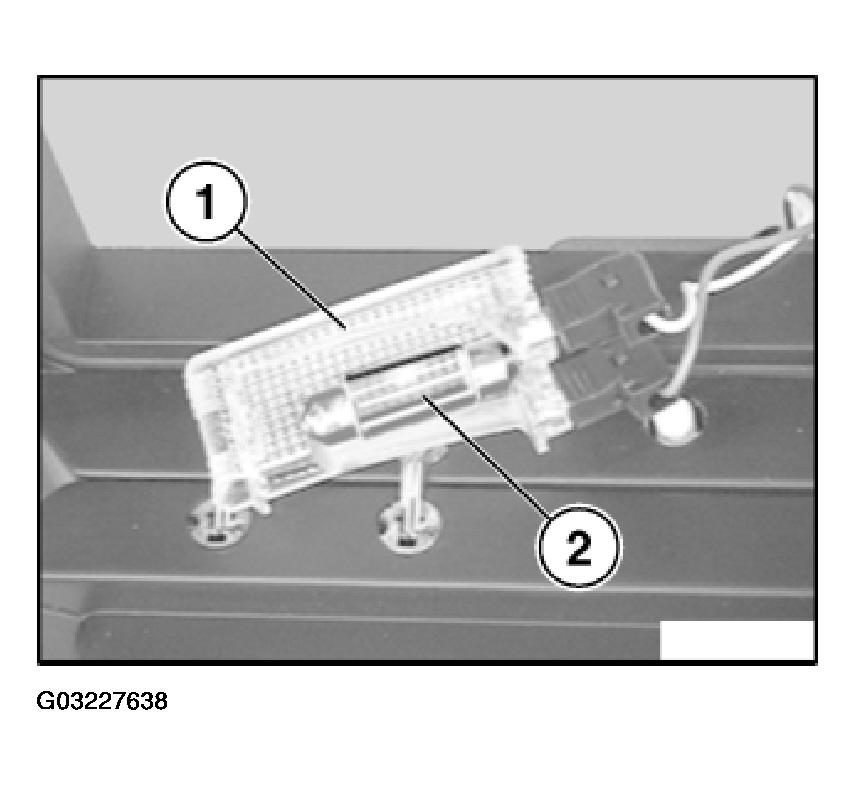

Remove cover with bulb holder (1) and replace bulb (2).

Installation:

Note type of bulb.

Fig 2: Removing Cover With Bulb Holder
