65 52 023 Replacing panel for on-board monitor (control panel, widescreen)

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

Necessary Preliminary Tasks:

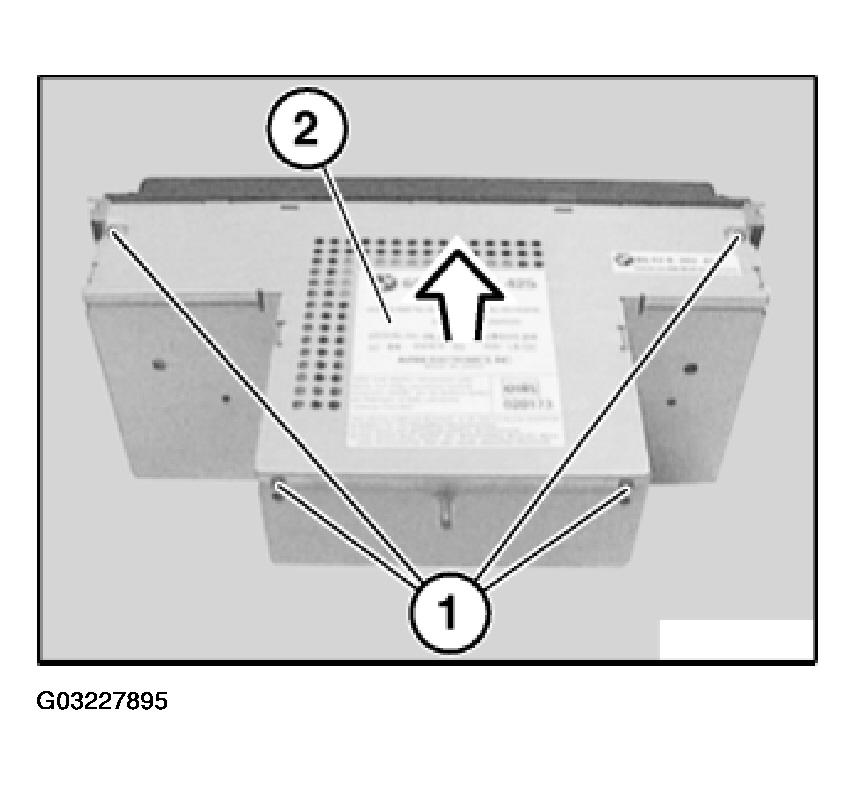

Release screws (1).

Remove upper housing section (2) in direction of arrow.

Fig 1: Removing Upper Housing Section In Direction Of Arrow

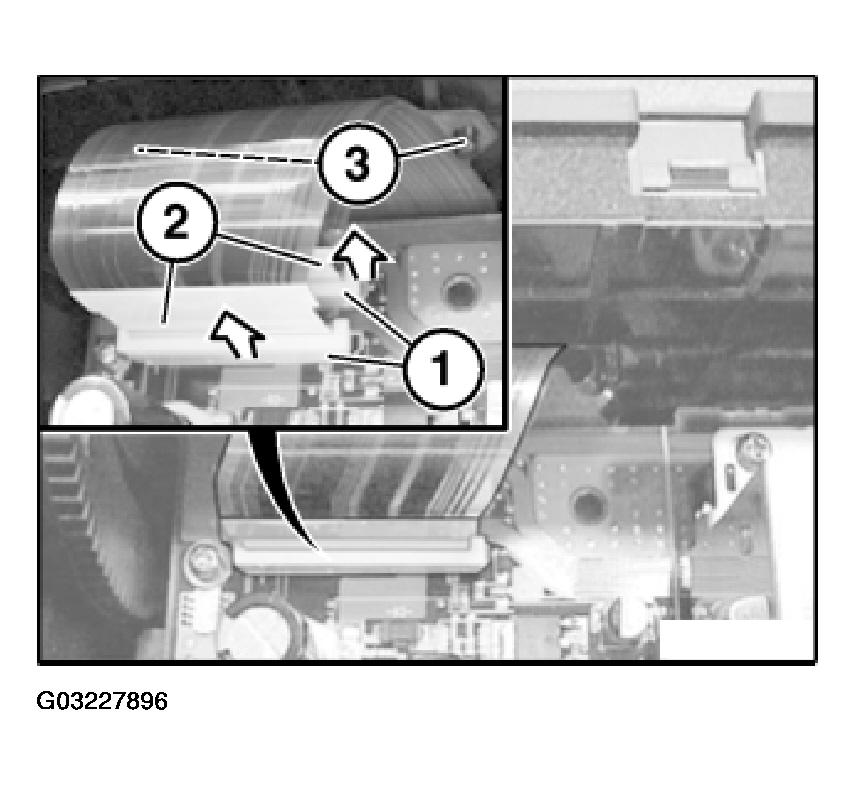

Raise locks (1) in direction of arrow.

Detach ribbon cables (2) and feed out at catches (3).

Fig 2: Raise Locks (1) In Direction Of Arrow, Detach Ribbon Cables (2) And Feed Out At Catches (3)

Installation:

Make sure ribbon cables are correctly seated.

NOTE: Carefully feed out ribbon cables when removing panel for on-board monitor (control panel).

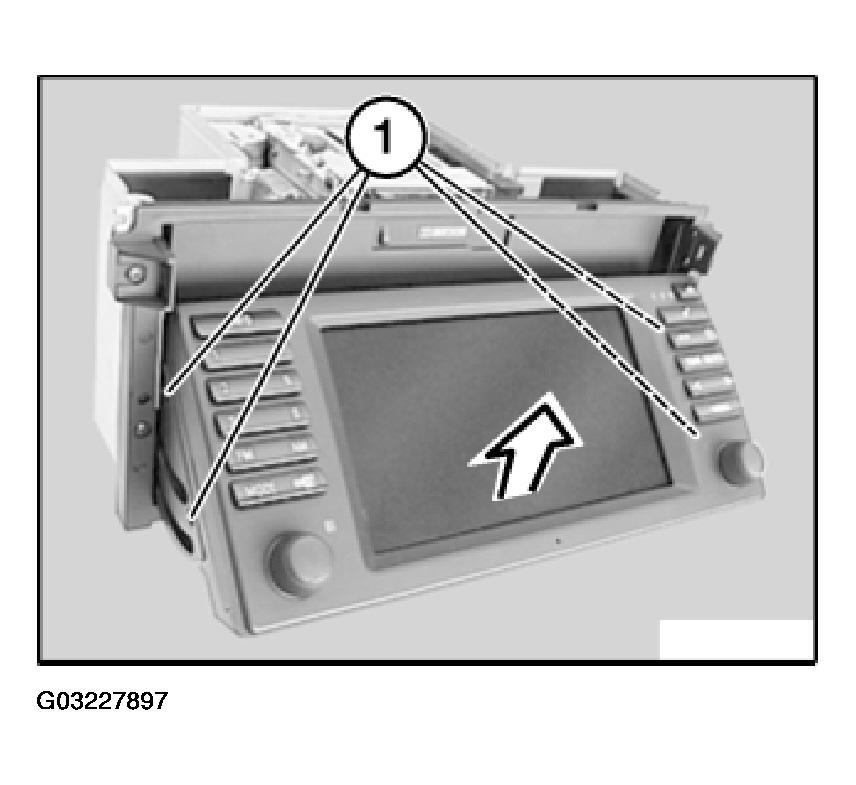

Release screws (1).

Remove panel for on-board monitor (control panel) in direction of arrow.

Fig 3: Releasing Screws And Removing Panel For On-Board Monitor (Control Panel) In Direction Of Arrow
