65 24 020 Removing and installing or replacing wavetrap

Remove trim from right C-pillar, refer to 51 43 251 REMOVING AND INSTALLING OR REPLACING TRIM FROM REAR LEFT OR RIGHT ROOF PILLAR

Remove connector (1). Disconnect plug connection (2).

Unfasten screw (3) and remove wavetrap.

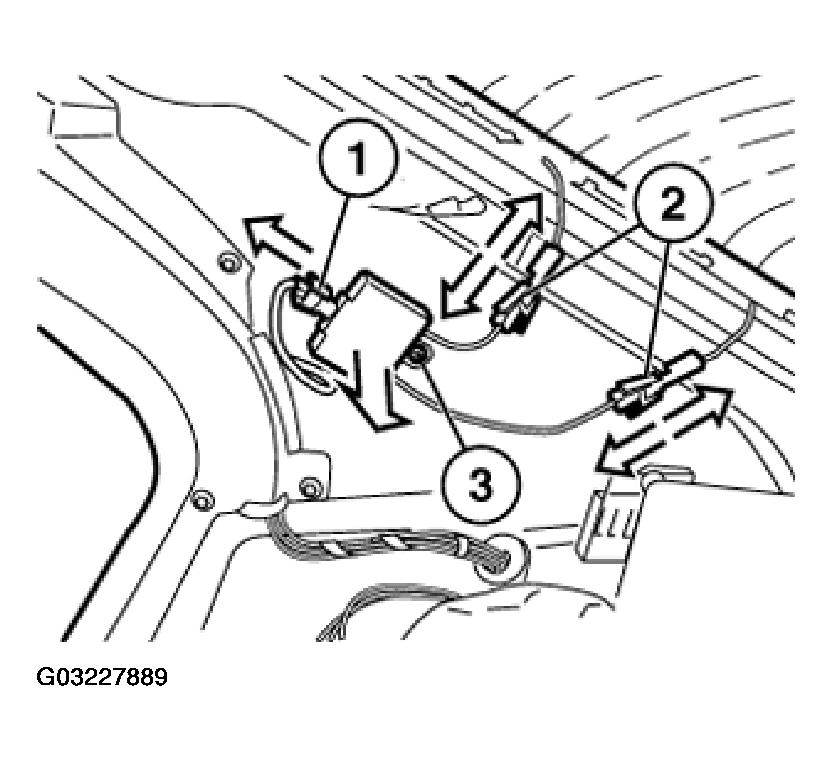

Fig 1: Removing Connector (1), Disconnecting Plug Connection (2), Unfastening Screw (3) And Removing Wavetrap
