65 90 530 Removing and installing magnetic field sensor

Removing trim for oddments tray, 51 46 000

Open flap in rear left side panel. Remove rear left wheel arch trim. Disconnect plug-in connection.

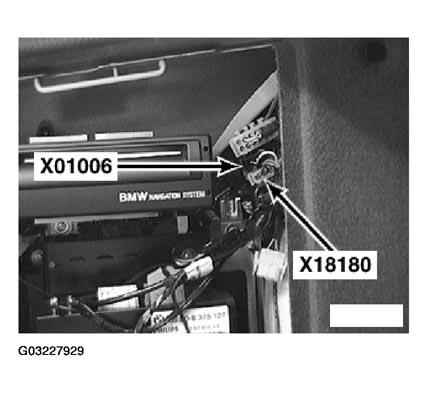

Fig 1: Disconnecting Plug-In Connection

Route lines from trunk out to the oddments tray.

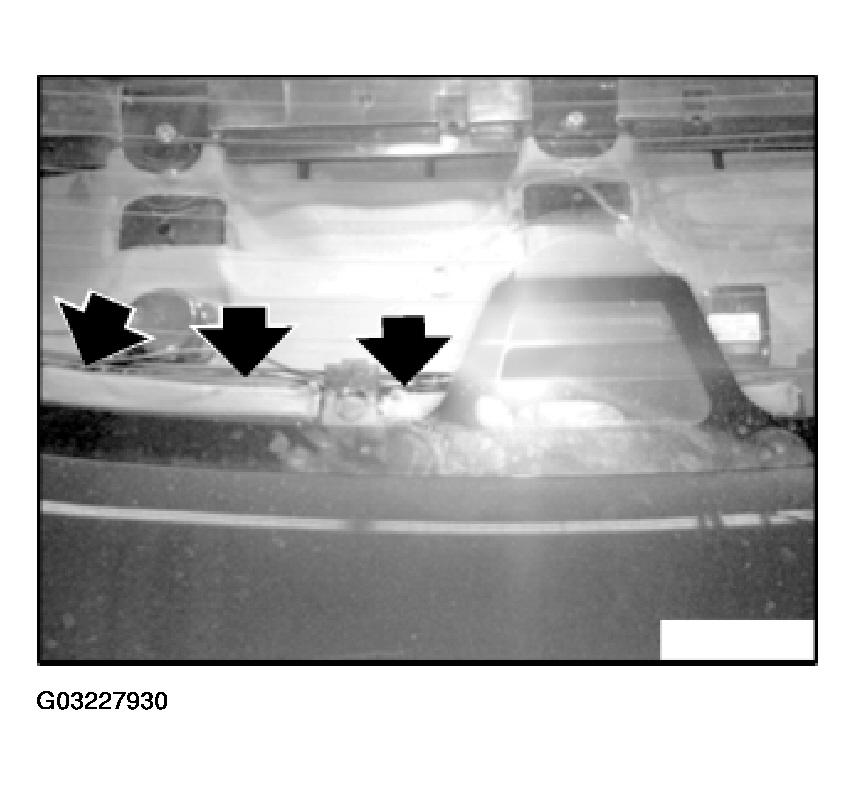

Fig 2: Routing Lines From Trunk Out To Oddments Tray

Pull magnetic field sensor upwards to unclip.

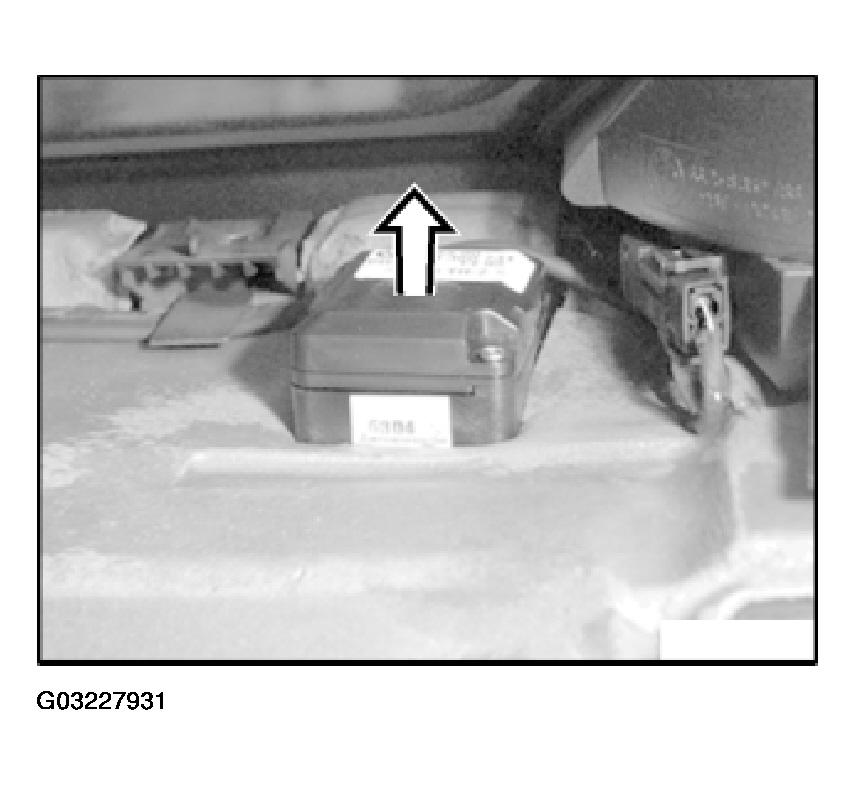

Fig 3: Pulling Magnetic Field Sensor Upwards To Unclip
