65 90 520 Removing and installing/replacing receiver module for Global Positioning System (GPS)

If necessary, remove CD changer, refer to 65 11 070 REMOVING AND INSTALLING/REPLACING CD CHANGER  .

Open flap in rear left side panel.

Disconnect plug connections (1) and cut open cable ties (2).

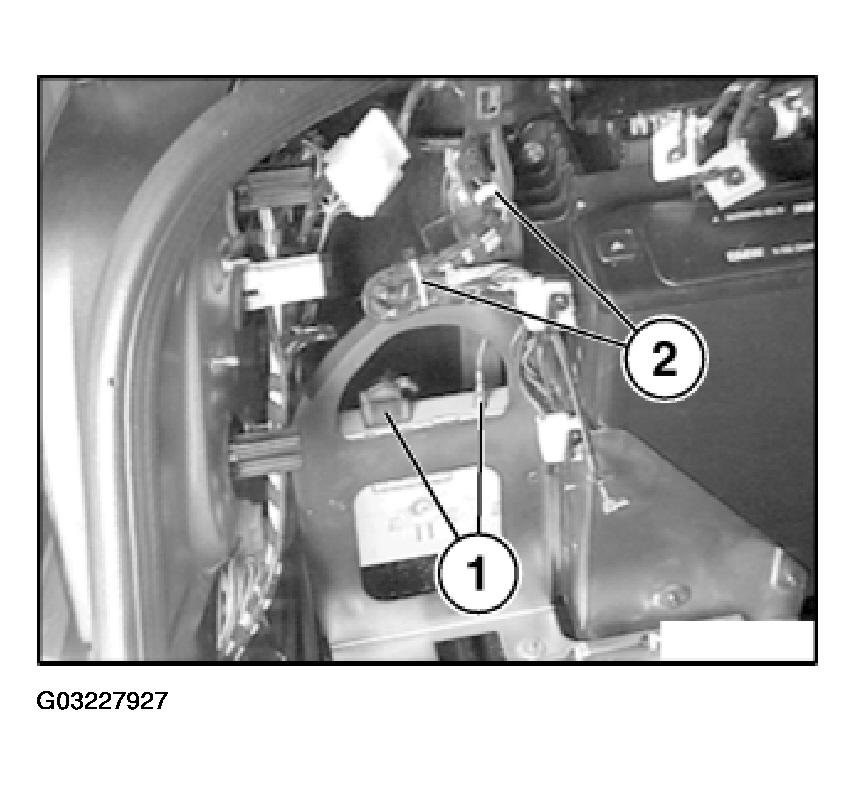

Fig 1: Disconnecting Plug Connections And Cutting Open Cable Ties

Release screws (1) and (2) and remove receiver module with bracket.

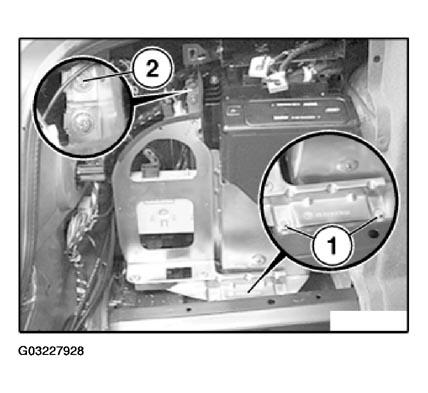

Fig 2: Removing Receiver Module With Bracket

During replacement, separate receiver module from bracket.
