65 90 510 Removing and installing/replacing navigation computer with CD-drive

Special Tools Required:

Replacement:

Load operating software and carry out coding.

Open flap (1) in side panel, rear left.

Release navigation computer (2) with special tool 65 5 400 (3) and pull out.

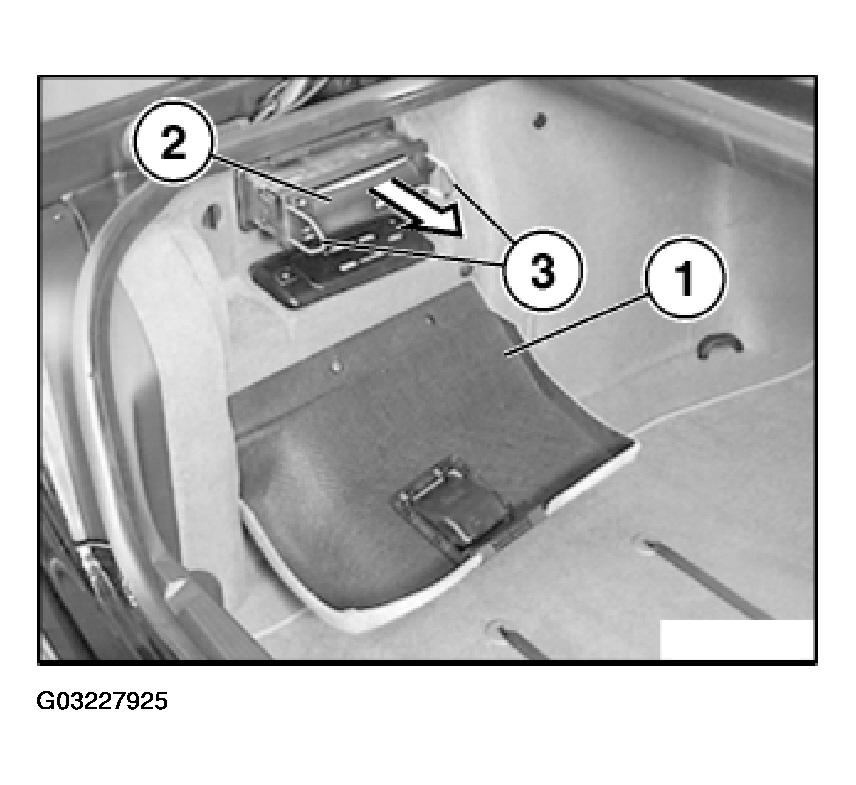

Fig 1: Releasing Navigation Computer With Special Tool 65 5 400

Disconnect plug connections and remove navigation computer.

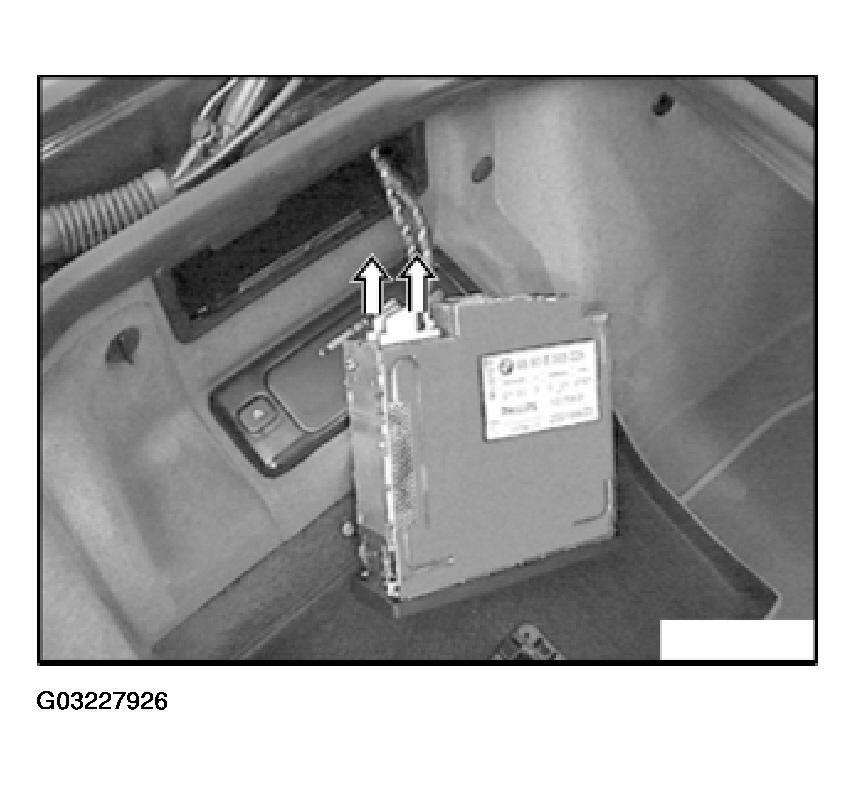

Fig 2: Disconnecting Plug Connections
