65 11 070 Removing and installing/replacing CD changer

If necessary, remove video module, refer to 65 50 510 REMOVING AND INSTALLING/REPLACING VIDEO MODULE FOR ON-BOARD MONITOR (SALOON)  .

If necessary, remove receiver module (GPS), refer to 65 90 520 REMOVING AND INSTALLING/REPLACING RECEIVER MODULE FOR GLOBAL POSITIONING SYSTEM (GPS)  .

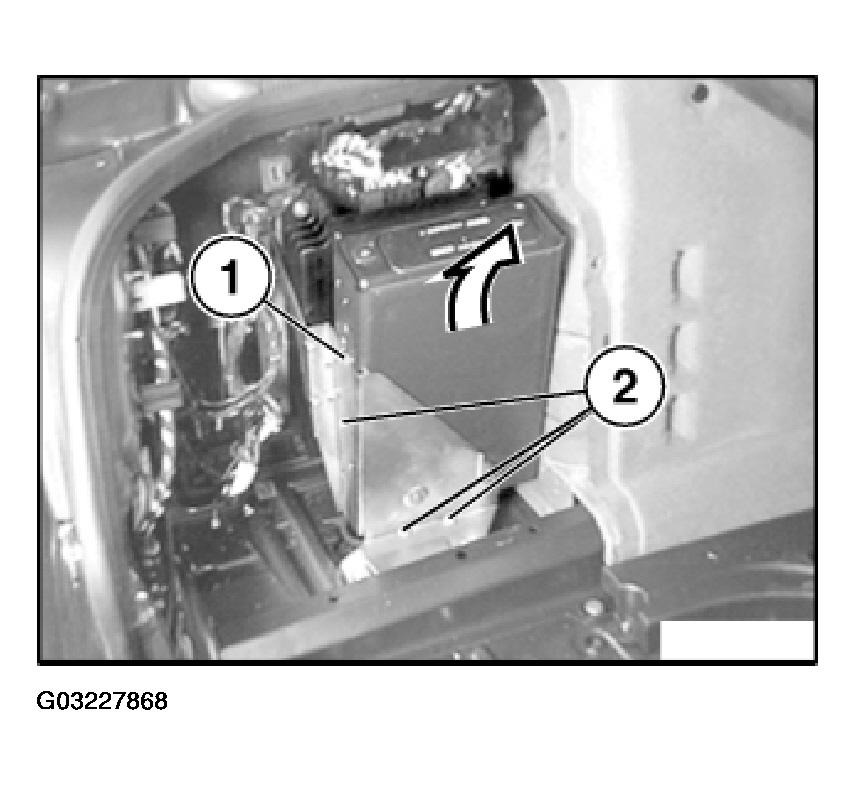

Open flap in rear left side panel. Slacken screw (1), release screws (2) and lift CD changer a little and swing out.

Fig 1: Slacken Screw (1), Releasing Screws (2) And Lifting CD Changer A Little And Swing Out

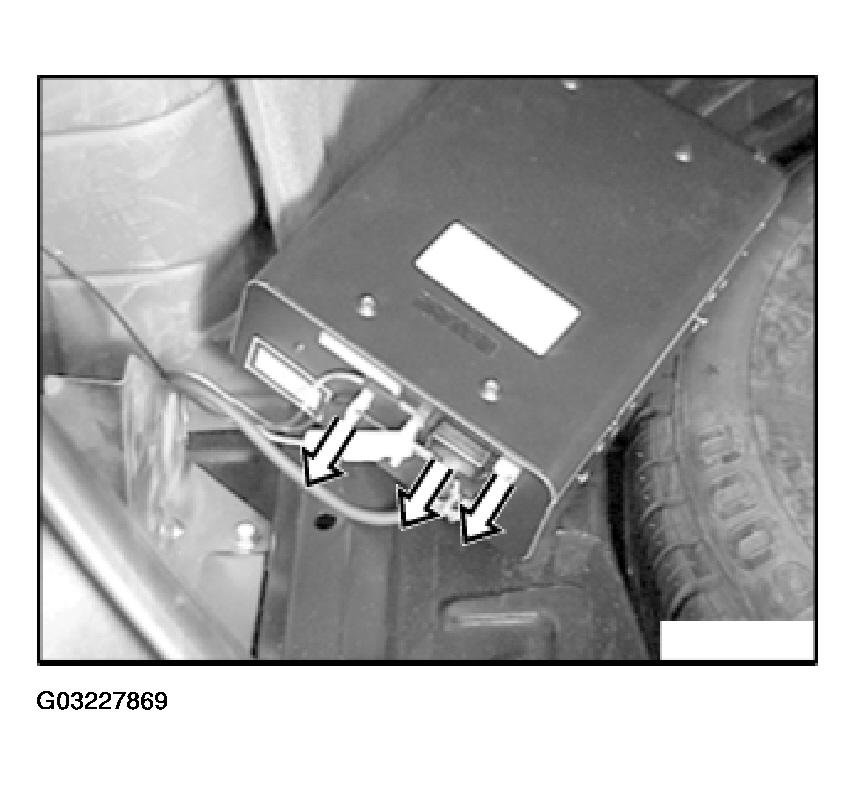

Unfasten plug connection.

Fig 2: Unfastening Plug Connection
