65 11 055 Removing and installing/replacing radio receiver (with board monitor): Notes
The following parts must be removed first:
- Video module, refer to 65 11 070 REMOVING AND INSTALLING/REPLACING CD CHANGER
- If necessary, HiFi amplifier, refer to 65 12 070 REMOVING AND INSTALLING/REPLACING AMPLIFIER (HIFI SYSTEM) .
- Bracket for video module and amplifier (HiFi).
- Insulating mat on rear left side panel.

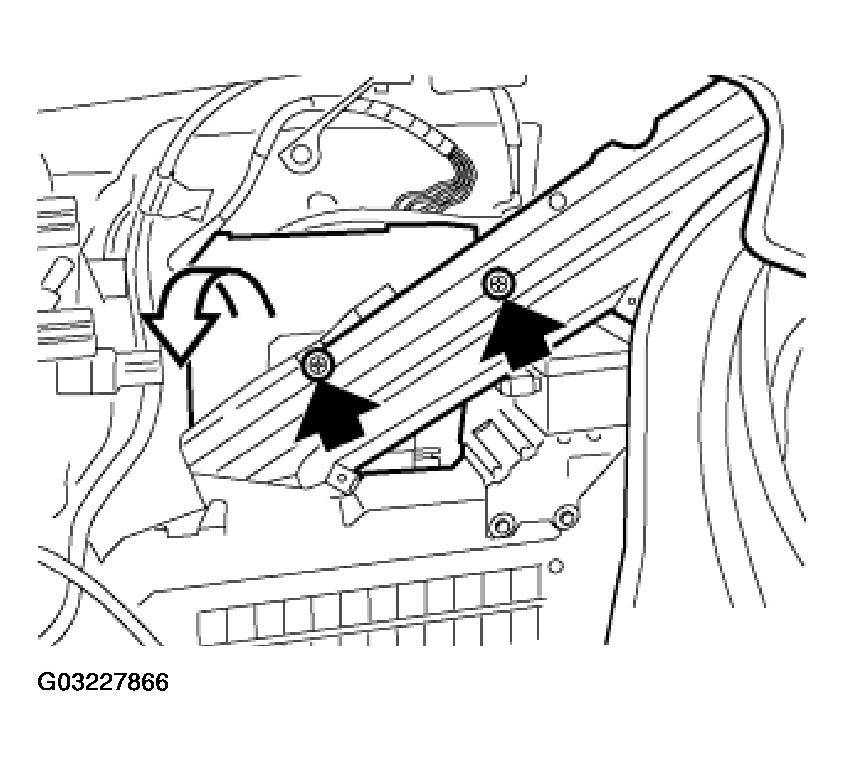

Unfasten screws. Remove receiver with bracket.
